Spectra Precision GL422N Dual Slope Laser with No Receiver, No Remote

Spectra GL422N-BCC Dual Slope Grade Laser
Horizontal / Vertical Red Beam Laser - Rechargeable Batteries

GL422N-BCC Laser with Carrying Case - No Receiver and No Remote

The automatic, self-leveling Spectra Precision® GL422N-BCC single grade lasers is the most rugged, cost-effective lasers that do three jobs—level, grade, and vertical alignment. Even in harsh jobsite conditions, the GL422N-BCC delivers consistently reliable and accurate performance, enabling you to work faster and smarter.

The rugged GL422N-BCC lasers can withstand drops of up to three feet onto concrete and tripod tipovers up to five feet. This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product.

Grade Match measures and displays the existing grade over unknown ground. As a consequence it eliminates time consuming and error prone calculations

PlaneLok automatically locks on to an existing horizontal elevation or vertical alignment point which eliminates all drift or possibility of error due to improper calibration or weather.

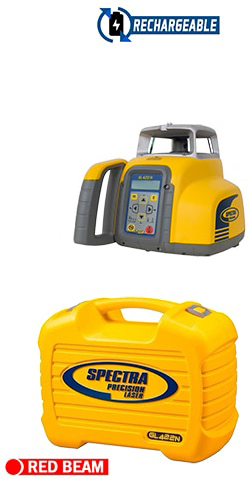

This Spectra GL422N-BCC comes with Laser and Carrying Case ONLY.

Spectra Precision GL422N-BCC Dual Grade Laser Package INCLUDES
	GL422N Dual Grade Laser Transmitter Rechargeable Batteries Small Carrying Case Multilanguage CD, Quick user guide and Safety Instructions 5-Year Warranty

Spectra GL422N-BCC Key FEATURES and BENEFITS

GL422N is dual grade plus horizontal and vertical. Simple, accurate dial in grade from -10% to +15%
Up to 2,600 ft working diameter which increases productivity by reducing need for multiple set-ups on a large job site
Fully automatic self-leveling in both grade axis, horizontal, and vertical which provides fast, accurate setup in all applications
Fast setup, minimal training time and automatic self-leveling minimize operating costs and boost productivity
Highly rugged design and patented lighthouse seal protects the rotor head and glass and offers superior drop and weather protection for reduced downtime
2-way full function remote control allows grade changes to be made from anywhere on the jobsite
Temperature calibrated for high accuracy over wide temperature changes
IP66 dust and water-proof to withstand harsh jobsite conditions
Customizable with choice of HL760 or CR600 receivers
Mask mode eliminates interference from other crews on the jobsite
Automatic Grade Match and PlaneLok

Spectra GL422N-BCC APPLICATIONS

Leveling concrete forms and footers
General construction vertical alignment and plumb such as anchor bolt and form alignment
“Over the top” sewer and storm drain pipe installations
Sports fields, tennis courts and driveways
Grading and excavating
Steep slope road embankments and ditch banks
Ramps and drainage

Spectra Precision GL422N Dual Grade Laser SPECIFICATIONS
Leveling Accuracy	± 1.5 mm/30 m 1/16" @ 100 feet 10 arc seconds
Operating Diameter	800 m 2,600 feet
Grade Range	-10% to +15% Single Axis
Rotation	300, 600 rpm
Laser Type	red diode laser 650 nm
Laser Class	Class 2, <3.4 mW
Self-Leveling Range	±5° (±9%)
Leveling Indicators	LCD indications and LED flashes
Radio Range with HL760	up to 330 feet
Power Source	10.000 mAh NiMH battery pack
Battery Life	35 hours NiMH 50 hours Alkaline
Operating Temperature	-4°F to 122°F
Storage Temperature	-4° to 158°F
Tripod Attachments	5/8 x 11 horizontally and vertically
Dust and Waterproof	Yes - IP66
Weight	6.8 lbs
Low voltage indication	LED battery indicator
Low voltage disconnection	unit shuts off
Warranty	5-Years

GL4x2N Series Package COMPARISION
Part #		Remote
SINGLE GRADE GL412N PACKAGE OPTIONS
SINGLE GRADE - STANDARD PACKAGES
GL412N	HL760 Deluxe Receiver with C70 Receiver Adapter and 105516 Vertical Adapter	RC402N
GL412N-14	CR700 Machine and Rod Mount Receiver with C70 Rod Clamp and C71 Magnetic Mount	RC402N
GL412N-NR	HL760 Deluxe Receiver with C70 Receiver Adapter and 105516 Vertical Adapter	NO REMOTE
GL412N-BCC	Laser and Carrying Case Only No Receiver	NO REMOTE
SINGLE GRADE - COMPLETE PACKAGES
GL412N-17	HL760 Deluxe Receiver with C70 Receiver Adapter and 105516 Vertical Adapter Heavy-Duty Tripod, Measuring Rod (10ths)	RC402N
GL412N-27	HL760 Deluxe Receiver with C70 Receiver Adapter and 105516 Vertical Adapter Heavy-Duty Tripod, Measuring Rod (Inches)	RC402N
GL412N-16	CR700 Machine and Rod Mount Receiver with C70 Rod Clamp and C71 Magnetic Mount Heavy-Duty Tripod, Measuring Rod (10ths)	RC402N
GL412N-26	CR700 Machine and Rod Mount Receiver with C70 Rod Clamp and C71 Magnetic Mount Heavy-Duty Tripod, Measuring Rod (Inches)	RC402N
DUAL GRADE GL422N PACKAGE OPTIONS
DUAL GRADE - STANDARD PACKAGES
GL422N	HL760 Deluxe Receiver with C70 Receiver Adapter and 105516 Vertical Adapter	RC402N
GL422N-14	CR700 Machine and Rod Mount Receiver with C70 Rod Clamp and C71 Magnetic Mount	RC402N
GL422N-NR	HL760 Deluxe Receiver with C70 Receiver Adapter and 105516 Vertical Adapter	NO REMOTE
DUAL GRADE - COMPLETE PACKAGES
GL422N-17	HL760 Deluxe Receiver with C70 Receiver Adapter and 105516 Vertical Adapter Heavy-Duty Tripod, Measuring Rod (10ths)	RC402N
GL422N-27	HL760 Deluxe Receiver with C70 Receiver Adapter and 105516 Vertical Adapter Heavy-Duty Tripod, Measuring Rod (Inches)	RC402N
GL422N-16	CR700 Machine and Rod Mount Receiver with C70 Rod Clamp and C71 Magnetic Mount Heavy-Duty Tripod, Measuring Rod (10ths)	RC402N
GL422N-26	CR700 Machine and Rod Mount Receiver with C70 Rod Clamp and C71 Magnetic Mount Heavy-Duty Tripod, Measuring Rod (Inches)	RC402N
All part numbers include laser transmitter, case and NiMH rechargeable battery pack and charger

NEED HELP or HAVE QUESTIONS? Give us a call 1-877-866-5721

GRADE LASER COMPARISON CHART

GL412N

Accuracy

1/16-inch @ 100-ft
10 arc seconds

Operating
Diameter

2,600-feet

Self-
Leveling
Range

±5 degrees electronic servo self-leveling

±14 degrees electronic servo self-leveling

Grade Range

-10 to +15%

-25% to +25%

Slope Type

Single

Dual

Single

Dual

X, Y, Z axis

Power
Source

4 x D-Cell NiMH Rechargeable Battery Pack

Battery
Life

35 Hours NiMH Rechargeable
50 Hours Alkaline

35 Hours NiMH Rechargeable
40 Hours Alkaline

Rotation Speed

300, 600 rpm

300, 600, 750 rpm

0 to 900 rpm

0 to 750 rpm

Water
Resistance

Yes IP66

Size (inches)
L x W x H

10.7 Length x 7.7 Width x 7.9 Height

9.4 Length x 5.9 Width x 11 Height

Weight

6.8 lbs

Warranty

5-Year

Wireless Remote Specifications

Remote Control
Type 2-way
Communication

RC402N

RC602N

RC603N

Battery Type

130 hrs continuous
1 year normal use

Range

330 feet

490 feet

Spectra Precision GL412N-NR Laser PACKAGE COMPARISON CHART
Part Number	Receiver HL760	Receiver CR700	Receiver Clamp	Machine Mag Mount	Remote	Batteries	Vertical Mount	15' Foot Grade Rod	2161 Tripod	Small Case

SINGLE GRADE GL412N PACKAGE OPTIONS
GL412N	HL760		C70		RC402N	Rechargeable	YES			YES
GL412N-14		CR700	C70	C71	RC402N	Rechargeable	YES			YES
GL412N-BCC										YES
GL412N-NR	HL760		C70			Rechargeable	YES			YES
GL412N-17	HL760		C70		RC402N	Rechargeable	YES	Tenths	YES	YES
GL412N-27	HL760		C70		RC402N	Rechargeable	YES	Inches	YES	YES
GL412N-16		CR700	C70	C71	RC402N	Rechargeable	YES	Tenths	YES	YES
GL412N-26		CR700	C70	C71	RC402N	Rechargeable	YES	Inches	YES	YES
DUAL GRADE GL422N PACKAGE OPTIONS
GL422N	HL760		C70		RC402N	Rechargeable	YES			YES
GL422N-14		CR700	C70	C71	RC402N	Rechargeable	YES			YES
GL422N-NR	HL760		C70			Rechargeable	YES			YES
GL422N-17	HL760		C70		RC402N	Rechargeable	YES	Tenths	YES	YES
GL422N-27	HL760		C70		RC402N	Rechargeable	YES	Inches	YES	YES
GL422N-16		CR700	C70	C71	RC402N	Rechargeable	YES	Tenths	YES	YES
GL422N-26		CR700	C70	C71	RC402N	Rechargeable	YES	Inches	YES	YES

NEED HELP or HAVE QUESTIONS? Give us a call 1-877-866-5721

Spectra Precision GL412N Dual Grade Laser DOWNLOADS
GL412N Datasheet page 1	GL412N Datasheet page 2

GL412N User Guide

Spectra Precision GL412N Hands-on-Training

NEED HELP or HAVE QUESTIONS? Give us a call 1-877-866-5721

Laser Orientation:

Horizontal / Vertical

Application:

Interior / Exterior

Laser Color:

Red

Laser Range (diameter):

2,600 feet

Laser Accuracy:

1/16-inch

Grade Type / Range:

Dual / -10% to +15%

Plumb Point:

Battery Type:

Rechargeable

Remote Control:

Optional
