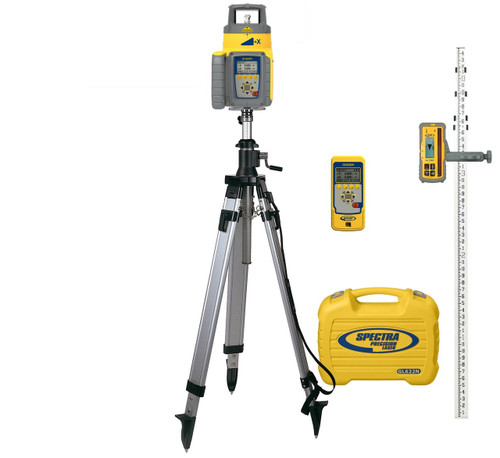

Spectra Precision GL622N-29 Dual Grade Laser INCHES Package with HL760 Receiver, Remote and Elevator Tripod

Versatile Automatic Single Grade Laser for Level, Grade, and Vertical Alignment

The GL622N is a dual slope grade laser. This rugged, automatic self-leveling laser has a grade capability of ± 25% and can be used in a wide variety of grading, excavating and alignment applications by general and specialty contractors. An intuitive keypad and graphic display mae all grade and alignment functions easy to use and greatly reduces setup time and increases productivity.

The GL622N includes the RC602N  full-function radio remote control. Both the remote and lasers  have  a large,  intuitive graphic displays and  keypads  that make  setups easier  and faster than ever. The displays are also backlit for ease of viewing. With the remote, contractors can do everything that they can do at the laser keypad, up to 500 feet away. The ability to make grade changes and start automatic alignments remotely can significantly reduce setup time and speed operations.

Each laser system includes the advanced HL760 Digital Receiver that provides a digital readout of elevation and can be used at an operating diameter of up to 2,600 feet.  With the HL760, several advanced features of the GL600 series can be utilized:

Grade Match:  Wireless communication between the HL760 Digital Receiver  and the transmitter provide automatic Grade Matching which allows measurement of unknown grade values between two points.

Plane-Lok: For applications that require maximum stability and accuracy, PlaneLok is available in both the horizontal and vertical planes. PlaneLok automatically locks the beam on the receiver and keeps it on grade, reducing typical environmental factors that may induce an error.

Automatic Axis Alignment (GL622N  only): Automatic axes alignments can be accomplished by positioning the receiver at the direction hub in a range of +/-40° at the desired laser axis. This allows contractors to easily perform dual axis alignments for grade work applications such as sports fields,  parking lots, tennis courts, driveways or any irregular field with non-perpendicular grade profiles

• GL622N Dual Grade Laser Transmitter

• RC602N Remote Control
• HL760 Laser Receiver Laserometer

• Rod Clamp for Receiver C70
• 105516 Vertical Adapter for HL Receiver
• 15-Foot Adjustable Aluminum Grade Rod GR152 with Measurements in INCHES
• Aluminum Elevator Tripod 2162
• Q104781 Worldwide Charger
• Q104667 NiMH Rechargeable Battery Pack
• Carrying Case
• Operating Manual

• GL622 is a dual grade laser with a Large compensated grade range of
  -25% to +25% (not simultaneously on both axis).
• Vertical and horizontal setups are also compensated
• Automatic electronic self-leveling provides fast, easy horizontal level, grade, and vertical plumb setup
• Quick setups with the 2-way radio remote control
• Simplifies level, horizontal, grade and vertical alignment setups
• Automatic temperature compensation : Temperature reference check every 9°F (5°C) or user driven by a menu option
• Automatic Axis Alignment on the GL622N  provides precise automatic axis alignments to a desired alignment point
• Long operating range 2600-foot diameter
• Intuitive keypad and graphic display
• Password secured
• Electronic Leveling Vibration Filter dampens vibrations typically experienced on tall tripods, in high winds, or on high vibration jobsites
• Very rugged takes a 3-foot drop on concrete - Reduces service and repair costs

• Mask mode eliminates interference with other crews on the jobsite
• Radio communication between the laser and HL750 Laserometer allow advanced features and remote display capabilities.

• Grade Match displays the existing grade over unknown ground and eliminates time consuming and error prone calculations.
• PlaneLok automatically locks on to an existing elevation or vertical alignment point which eliminates all drift or possibility of error due to improper calibration or weather
• Adjustable  rotation speeds  plus Scanning Mode on the GL622N  increase the versatility of the laser allowing use in interior applications
• 5 Year “No Cost” Warranty

• General Construction Leveling such as concrete forms, footers and Pads

• Dual Slop Grading and Steep Slope Excavating
• Precision placement of concrete for critical specification surfaces over long distance and with laser controlled screeds (Automatic PlaneLok)
• Drift free general construction vertical allignment and plumb for plus form, tilt up and curtain wall plumbing (Automatic PlaneLok)
• General construction vertical alignment and plumb such as anchor bolt and form alignment
• “Over the top” sewer and storm drain pipe installations
• Sports fields, driveways, ramps and drainage

• General construction grading and excavating

• Slope work for sports fields, driveways, ramps and parking garages
• Steep slope road embankments and ditch banks
• Interior construction – layout of walls and installation of drop ceilings

• Trenching
• Remote grade checking with cable free remote display
• Wireless monitoring of foundations and steel erections
• Risk free monitoring of tilt up wall position
