| Spectra Precision HV1305C Horizontal / Vertical RED Laser Package |
General Purpose Construction Laser for Interior and Exterior Applications
includes: HL450 Laserometer Receiver, RC1402N Remote, Small Case and Rechargeable Batteries
|
The automatic self-leveling Spectra Precision® HV1305C red beam laser is the most rugged, cost-effective lasers that provide both horizontal and vertical alignment. Even in harsh job site conditions, the lasers deliver consistently reliable and accurate performance, enabling you to work faster and smarter. |
The HV1305C is capable of handling a wide variety of horizontal, vertical and plumb applications in both interior and exterior projects. Its high-visibility Red beam enables simultaneous rotating and 90 degree plumb references and is easy to see even in brightly lit interiors |
|
|
|
|
|
Spectra Precision HV1305C Laser Package
The automatic self-leveling Spectra Precision® HV1305C red beam laser and HV1305GC green beam laser are the most rugged, cost-effective lasers that provide both horizontal and vertical alignment. Even in harsh jobsite conditions, the lasers deliver consistently reliable and accurate performance, enabling you to work faster and smarter.
The rugged HV1305C laser can withstand drops of up to 3 feet onto concrete and tripod tip-overs up to 5 feet. This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product.
Various HV1305C packages are offered that are appropriate for interior applications, exterior applications or both
The lasers have Bluetooth® built in so they can be controlled with your smartphone with the Spectra Precision Laser Remote App. This eliminates the extra cost of the remote control.
These HV1305C Series Lasers are designed for commercial and industrial buildings and offer superior accuracy, and distance compared to line and point lasers.
|

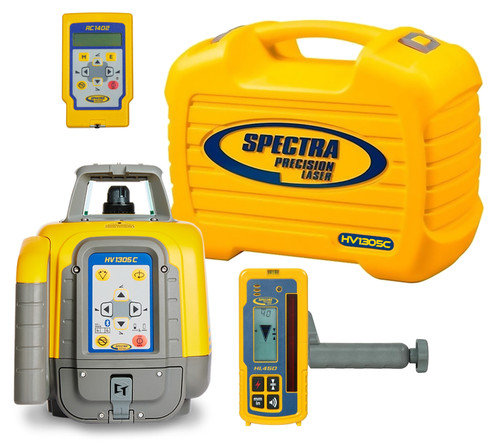

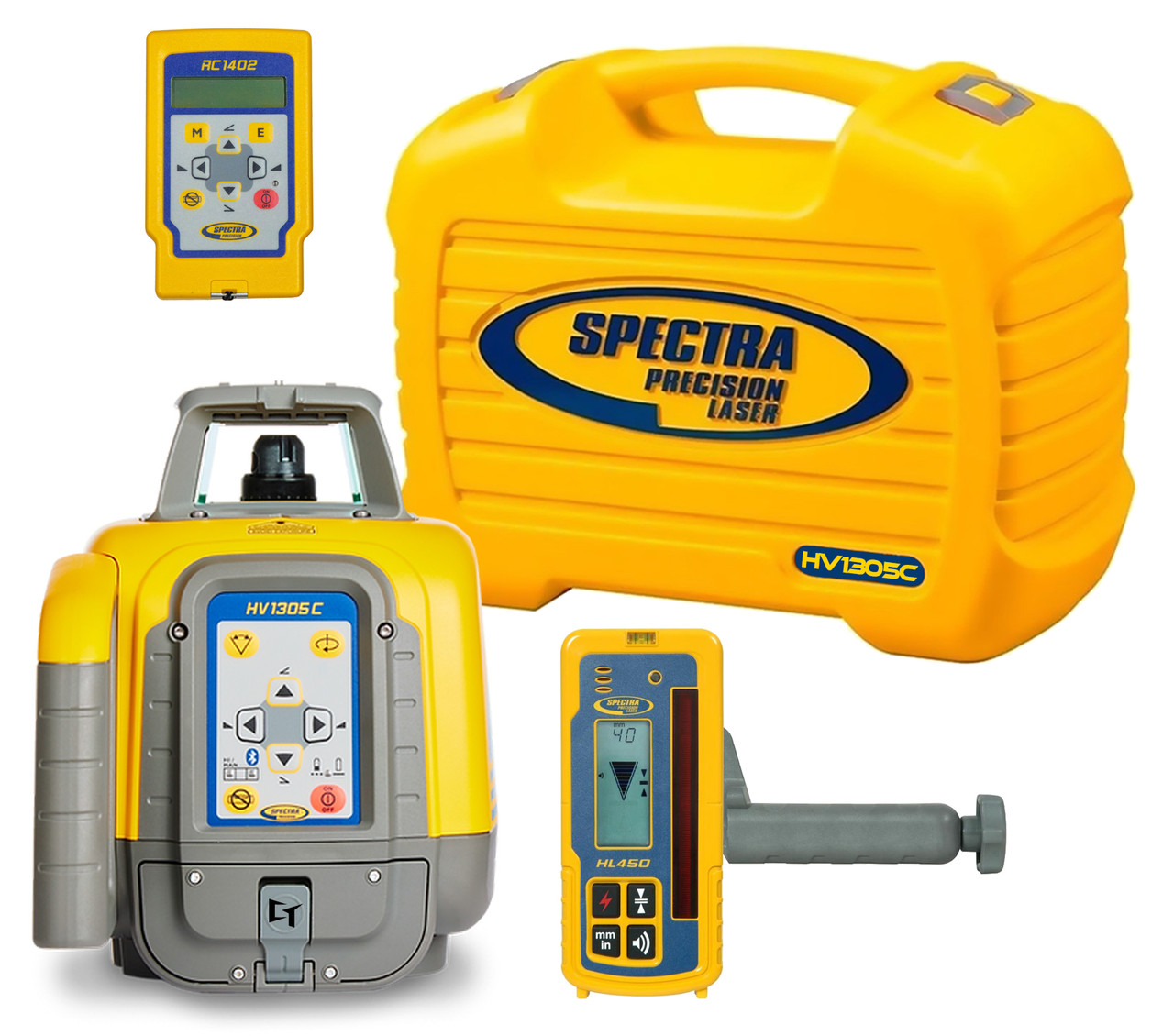

| Spectra Precision HV1305C Exterior Laser Complete Package INCLUDES |
|
|
- HV1305C Horizontal / Vertical Red Laser Transmitter
- HL450 Laser Receiver with C45 Receiver/Rod Clamp
- 105516 Vertical Adapter for HL Receiver
- RC1402N Remote Control
- Smart Remote App - Laser control from your Smart Phone
- NiMH RECHARGEABLE Batteries - B10
- Battery Charger - C10
- Small Carrying Case 100981-00
- Safety instructions
- Warranty 5-Year
|
|
Spectra HV1305C Key IMPROVEMENTS Over HV302 Series
|
- Faster, more accurate Electronic Pointing and Line Scan
- Automatic Vertical Plumb-down
- Versatile Charging - Internal and External (No need to remove the batteries to charge)
- More Robust Radio Comms with RC1402 remote control and HL760 receiver
- Smart Remote APP : Allows for quick and easy setup of manual slope with one person
- Instant Warm-up during laser setup
- Intuitive Remote-Control App with Bluetooth – no need for RC1402 or ST805
|
| Spectra HV1305C Key FEATURES and BENEFITS |
- Fully Automatic Self-Leveling in Horizontal or Vertical
- For use in Interior or Exterior Applications
- Highly Accurate - 1/16 inch at 100 feet
- Longest Range - Working Range up to 4,000 foot diameter with HL760 or CR700
- Bluetooth connection allows easy adjustments and laser control with a smartphone. (Tap and GO)
- Height of Instrument Alert - Unit stops rotating when jarred to avoid erroneous readings.
- Automatic PLUMB DOWN Beam for quick and easy Horizontal Set-Up
- Rotation selection of 0, 10, 100, 200, 300 or 600 RPM
- Composite material housing is rugged,lightweight and IP66 weatherproof making it easy for contractor carry and use in demanding jobsite conditions, reducing repair downtime
- Fully automatic self-leveling in both horizontal and vertical for fast, accurate setup in horizontal and vertical applications
- Single-axis manual slope mode with ‘cross-axis’ self-leveling allows grade matching for basic slope work, while maintaining accuracy in the cross-axis
- Automatic Grade Match which establishes a plane between two different elevations elevations using the RC402N Remote Control and HL760 Receiver
- Horizontal and Vertical PlaneLok which eliminates errors caused by drift, improper calibration, and environmental conditions using RC402N Remote Control and HL760 Receiver
- Highly visible 3A/3R beam and superior scanning functions making it easier for interior layout and aligning over longer range job sites (visible diameter of 330-feet)
- Long-range remote control operation allows convenient access to key functions across the job site
- Flexible power options, including rechargeable battery pack, AC power and alkaline batteries, combined with low battery warnings, reduces downtime by having multiple power options
|
| Spectra HV1305C Laser APPLICATIONS |
- Interior and exterior, light to medium commercial, and residential construction
- Leveling and aligning of forms and footers
- Leveling and aligning of interior walls
- Installation of ceilings and raised floors
- Interior finishing work
|
| |
|
|
| |
| Spectra Precision HV1305C Red Beam Laser SPECIFICATIONS |
| Leveling Accuracy |
1/16“ @ 100 ft, 10 arc seconds |
| Operating Diameter |
4,000 feet with HL760 Receiver |
| Rotation |
Preset 0, 10, 100, 200, 300, 600 rpm
Adjustable in 10 rpm increments > 100 rpm |
| Pre-Programmed Scan Angles |
5°, 15°, 45°, 90°, 180°
Adjustable in
|
| Plane Match Distance |
260 feet |
| Plane Lok Distance |
260 feet |
| Laser Type |
red diode laser 600-680 nm |
| Laser Class |
Class 2 / 510 to 530 nm |
| Automatic Plumb Down Accuracy |
15 arc min, 1/4 inch @ 4 feet |
| Plumb down Limitation |
± 8° |
| Self-Leveling Range |
± 5° (± 8.7%) |
| Leveling Indicators |
LED flashes |
| Radio Range |
(HL760): up to 330 feet |
| Power Source |
Rechargeable 10,000 mAh
Alkaline Batteries |
| Battery Life |
45 hours alkaline |
| Operating Temperature |
-4°F to 122°F |
| Storage Temperature |
-13°F to 158°F |
| Tripod Attachments |
5/8 x 11 horizontally and vertically |
| Dust and Waterproof |
Yes - IP66 |
| Weight |
7.7 lbs |
| Low Voltage Indication |
LED battery indicator |
| Low Voltage Disconnection |
unit shuts off |
| Warranty |
5 Years |
|
| |
| HL450 Laser Receiver / Laserometer DETAILS - INCLUDED in HV1305C-SC-2 Package |
The Spectra HL450 Laser Receiver is a Highly versatile receiver for basic and advanced leveling and aligning
The Spectra Precision® HL450 Laserometer is an easy-to-use tool that accurately measures elevations across the site, and is ideal for use with any rotating transmitter.
|
 |
The HL450 features a digital readout of elevation that provides a numeric display of ± 40 mm or ±1.5 inches. The readout is displayed on the large front and rear LCD’s and shows exactly how far the elevation is from on-grade. Accurate measurements can be made without moving the rod clamp, saving time and increasing productivity.
The HL450 has a 4-inch reception height, double the typical industry standard, which allows quick acquisition of the laser beam. Also included is a patented anti-strobe sensor that prevents construction lights from setting off the receiver and makes it easier to identify the laser beam signals.
The Laserometer is designed to survive the tough construction site conditions. It is totally waterproof and can withstand a drop up to 5-feet onto concrete.
Spectra HL450 Laserometer Features and Benefits:
- Digital Readout of Elevation allows faster readings by displaying the exact numerical distance from grade, eliminating the need to move the receiver to get to "on-grade".
- Anti-Strobe Sensor stops construction strobe lights from setting off the receiver and eliminates phantom strikes for easier identification of true laser beam signals.
- Large reception height allows faster readings by acquiring the beam quickly, and makes it easier to stay in the beam.
- Durable in tough environments provides less downtime due to damage or service requirements after accidental drops.
HL450 Laser Receiver Applications
Setting and checking jobsite elevation and depth for:
• Cut and fills
• General grading
• Foundations, forms, and footings
• Excavations |
|
|
| Spectra Precision HL450 Receiver SPECIFICATIONS |
| Digital readout units |
mm, cm, feet, inches, fractional inch
|
| Reception height |
4-inches |
| Six On-grade sensitivities |
Fine ~1/16 inch |
| |
Medium ~1/4 inch |
| |
Calibration Mode ~1/64 inch |
Beeper Volumes
|
Loud 100 dBA
|
| |
Low 65 dBA
|
| Battery Life (2 AA) |
70+ Hours continuous operation |
| Auto shut-0ff |
30 minutes / 24 hours |
| Operating Temp |
-4°F to 122°F |
| Dust and Waterproof |
Yes - IP67 |
Weight / without clamp
|
13.1 oz |
| Warranty |
3 Years "No Excuses" |
|
| |
| Spectra Precision RC1402 Remote Control - INCLUDED in HV1305C Laser Package |
| The Spectra RC402N remote control mirrors the basic functionality of the laser keypad and offers additional features using the M and E buttons. This RC402N Remote allows you to control the laser features and functions up to 330-feet away from the laser. Allowing for one person operation in many jobsite applications. |
 |
Spectra RC1402 Remote Controls...
- Manual Grade
- Rotation Speed
- Scan Mode Pre-Selected scan sizes
- 5°, 15°, 45°, 90°, 180°, 0°
- Automatic Grade Match
- Automatic Plane Lok
- Line Scan (Vertical Setup)
- Beam Plunge (Vertical Setup)
- Mask Mode
|
| Wireless Remote Specifications |
| Operating Range |
330-feet |
| Power Source |
2 x 1.5V AA Alkaline Batteries |
| Battery Life |
130 Hours |
| Dust and Waterproof |
Yes - IP66 |
|
|
|
|
| |
