| Spectra Precision HV1305C-SC-1 Horizontal / Vertical RED Laser Package |
General Purpose Construction Laser for Interior and Exterior Applications
includes: RC1402N Remote, HL760 Receiver,
GR151 - 15 Foot TENTHS Rod, Aluminum Tripod and Rechargeable Batteries |
The automatic self-leveling Spectra Precision® HV1305C red beam laser is the most rugged, cost-effective lasers that provide both horizontal and vertical alignment. Even in harsh job site conditions, the lasers deliver consistently reliable and accurate performance, enabling you to work faster and smarter. |
The HV1305C-SC-1 is capable of handling a wide variety of horizontal, vertical and plumb applications in both interior and exterior projects. Its high-visibility Red beam enables simultaneous rotating and 90 degree plumb references and is easy to see even in brightly lit interiors |
|
|
|
|
|
Spectra Precision HV1305C-SC-1 Laser Package

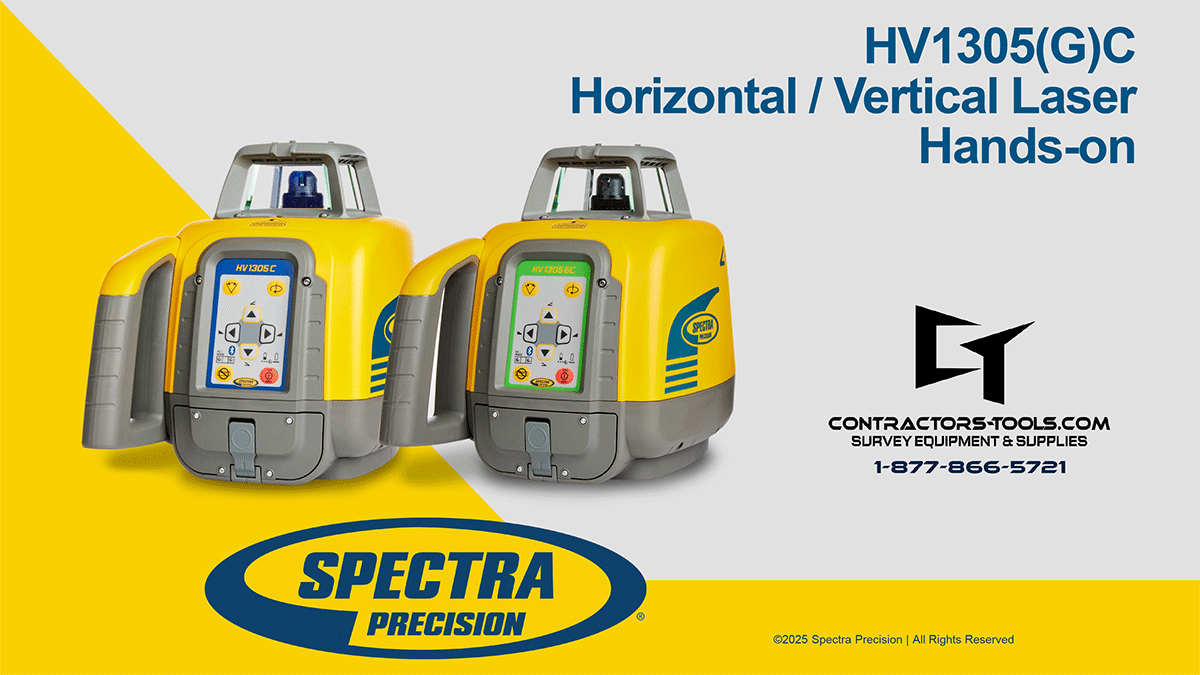

The automatic self-leveling Spectra Precision® HV1305C red beam laser and HV1305GC green beam laser are the most rugged, cost-effective lasers that provide both horizontal and vertical alignment. Even in harsh jobsite conditions, the lasers deliver consistently reliable and accurate performance, enabling you to work faster and smarter.
The rugged HV1305C-SC-1 laser can withstand drops of up to 3 feet onto concrete and tripod tip-overs up to 5 feet. This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product.
Various HV1305C packages are offered that are appropriate for interior applications, exterior applications or both
The lasers have Bluetooth® built in so they can be controlled with your smartphone with the Spectra Precision Laser Remote App. This eliminates the extra cost of the remote control.
These HV1305C Series Lasers are designed for commercial and industrial buildings and offer superior accuracy, and distance compared to line and point lasers.
|
| Spectra Precision HV1305C-SC-1 Exterior Laser Complete Package INCLUDES |
 |
- HV1305C Horizontal / Vertical Red Laser Transmitter
- HL760 Laser Receiver with C70 Receiver/Rod Clamp
- 105516 Vertical Adapter for HL Receiver
- RC1402N Remote Control
- GR151 Grade Rod with Measurements in TENTHS - Aluminum 15 foot
- Aluminum Tripod Q104025
- NiMH RECHARGEABLE Batteries - B10
- Battery Charger - C10
- "All in One" System Case - LARGE Carrying Case 128995-00
- Red Laser Glasses Q100206
- Safety instructions
- Warranty 5-Year
|
|
| Spectra HV1305C Key FEATURES and BENEFITS |
- Fully Automatic Self-Leveling in Horizontal or Vertical
- For use in Interior or Exterior Applications
- Highly Accurate - 1/16 inch at 100 feet
- Longest Range - Working Range up to 4,000 foot diameter with HL760 or CR700
- Bluetooth connection allows easy adjustments and laser control with a smartphone. (Tap and GO)
- Height of Instrument Alert - Unit stops rotating when jarred to avoid erroneous readings.
- Automatic PLUMB DOWN Beam for quick and easy Horizontal Set-Up
- Rotation selection of 0, 10, 100, 200, 300 or 600 RPM
- Composite material housing is rugged,lightweight and IP66 weatherproof making it easy for contractor carry and use in demanding jobsite conditions, reducing repair downtime
- Fully automatic self-leveling in both horizontal and vertical for fast, accurate setup in horizontal and vertical applications
- Single-axis manual slope mode with ‘cross-axis’ self-leveling allows grade matching for basic slope work, while maintaining accuracy in the cross-axis
- Automatic Grade Match which establishes a plane between two different elevations elevations using the RC402N Remote Control and HL760 Receiver
- Horizontal and Vertical PlaneLok which eliminates errors caused by drift, improper calibration, and environmental conditions using RC402N Remote Control and HL760 Receiver
- Highly visible 3A/3R beam and superior scanning functions making it easier for interior layout and aligning over longer range job sites (visible diameter of 330-feet)
- Long-range remote control operation allows convenient access to key functions across the job site
- Flexible power options, including rechargeable battery pack, AC power and alkaline batteries, combined with low battery warnings, reduces downtime by having multiple power options
|
| Spectra HV1305C Laser APPLICATIONS |
- Interior and exterior, light to medium commercial, and residential construction
- Leveling and aligning of forms and footers
- Leveling and aligning of interior walls
- Installation of ceilings and raised floors
- Interior finishing work
|
| |
|
|
| |
| Spectra Precision HV1305C Red Beam Laser SPECIFICATIONS |
| Leveling Accuracy |
1/16“ @ 100 ft, 10 arc seconds |
| Operating Diameter |
4,000 feet with HL760 Receiver |
| Rotation |
Preset 0, 10, 100, 200, 300, 600 rpm
Adjustable in 10 rpm increments > 100 rpm |
| Pre-Programmed Scan Angles |
5°, 15°, 45°, 90°, 180°
Adjustable in
|
| Plane Match Distance |
260 feet |
| Plane Lok Distance |
260 feet |
| Laser Type |
red diode laser 600-680 nm |
| Laser Class |
Class 2 / 510 to 530 nm |
| Automatic Plumb Down Accuracy |
15 arc min, 1/4 inch @ 4 feet |
| Plumb down Limitation |
± 8° |
| Self-Leveling Range |
± 5° (± 8.7%) |
| Leveling Indicators |
LED flashes |
| Radio Range |
(HL760): up to 330 feet |
| Power Source |
Rechargeable 10,000 mAh
Alkaline Batteries |
| Battery Life |
45 hours alkaline |
| Operating Temperature |
-4°F to 122°F |
| Storage Temperature |
-13°F to 158°F |
| Tripod Attachments |
5/8 x 11 horizontally and vertically |
| Dust and Waterproof |
Yes - IP66 |
| Weight |
7.7 lbs |
| Low Voltage Indication |
LED battery indicator |
| Low Voltage Disconnection |
unit shuts off |
| Warranty |
5 Years |
|
| |
| Spectra HL760 Digital Readout Receiver - INCLUDED in HV1305C-SC-1 Package |
Highly versatile receiver for basic and advanced leveling and aligning applications
Works with HV302 in automatic Grade Match and PlaneLok applications
|
 |
HL760 Laserometer Laser Receiver KEY FEATURES:
- LARGE 5-INCH RECEPTION HEIGHT
- Digital readout of elevation
- Exact distance from on-grade displayed
- Anti-strobe sensor to prevent false reading from jobsite strobe lights
- Withstands a drop of up to 10-foot
- Fingerprint function - detects only the laser beam of the paired transmitter
User Benefits:
- No need to go “on-grade” to measure
- Saves considerable time
- Reduces rework by allowing remote monitoring
- Increases reliability, accuracy and durability
|
| Spectra Precision HL760 Digital Readout Receiver SPECIFICATIONS |
| Digital readout units |
mm, cm, feet, inches, fractional inch
|
| Reception height |
5-inches |
| Six On-grade sensitivities |
Ultra fine ~1/32 inch |
| |
Super fine ~1.16 inch
|
| |
Fine ~1/8 inch |
| |
Medium ~1/4 inch |
| |
Coarse ~1/2 inch |
| |
Calibration Mode ~1/64 inch |
| Battery Life (2 AA) |
60+ Hours continuous operation |
| Auto shut-0ff |
20 minutes / 24 hours |
| Operating Temp |
-4°F to 122°F |
| Dust and Waterproof |
Yes - IP67 |
| Weight |
13.1 oz |
| Warranty |
3 Years "No Excuses" |
|
| |
| Spectra Precision RC1402 Remote Control - INCLUDED in HV1305C-SC-2 Laser Package |
| The Spectra RC402N remote control mirrors the basic functionality of the laser keypad and offers additional features using the M and E buttons. This RC402N Remote allows you to control the laser features and functions up to 330-feet away from the laser. Allowing for one person operation in many jobsite applications. |
 |
Spectra RC1402 Remote Controls...
- Manual Grade
- Rotation Speed
- Scan Mode Pre-Selected scan sizes
- 5°, 15°, 45°, 90°, 180°, 0°
- Automatic Grade Match
- Automatic Plane Lok
- Line Scan (Vertical Setup)
- Beam Plunge (Vertical Setup)
- Mask Mode
|
| Wireless Remote Specifications |
| Operating Range |
330-feet |
| Power Source |
2 x 1.5V AA Alkaline Batteries |
| Battery Life |
130 Hours |
| Dust and Waterproof |
Yes - IP66 |
|
|
|
|
| |
