Spectra Precision HV302-14 Horizontal / Vertical RED Laser Package with CR700 Multi-Use Receiver and Remote

Spectra Precision HV302-14 Horizontal / Vertical RED Laser Excavation Package

General Purpose Construction Laser for Interior and Exterior Applications includes CR700 Multi-Use Receiver, Remote Control and Alkaline Batteries

The HV302 is capable of handling a wide variety of horizontal, vertical and plumb applications in both interior and exterior projects. Its high-visibility Red beam enables simultaneous rotating and 90 degree plumb references and is easy to see even in brightly lit interiors

Spectra Precision HV302 Laser Package Whether your job is indoors or outdoors, the automatic self-leveling Spectra Precision HV302 Horizontal/Vertical Laser is the most rugged laser available, tough enough to handle a wide variety of horizontal, vertical and plumb applications in both interior and exterior projects. A split beam enables plumb point transfer and 90 degree layout. Even in brightly lit interior conditions, the high visibility beam of the HV302 delivers consistently reliable and accurate performance, enabling you to work faster and smarter. The rugged HV302 laser can withstand drops of up to 3 feet onto concrete and tripod tip-overs up to 5 feet. This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product. Various HV302 packages are offered that are appropriate for interior applications, exterior applications or both

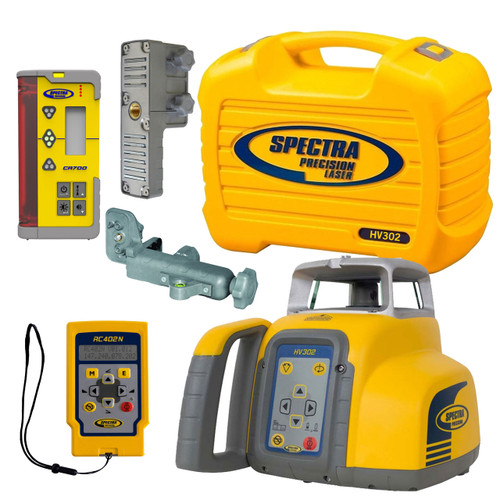

Spectra Precision HV302-14 Exterior Laser Package INCLUDES    HV302 Horizontal / Vertical Laser Transmitter CR700 Machine Mount or Rod Mount Receiver with C70 Rod Clamp and C71 Magnetic Machine Mount 105516 Vertical Adapter for HL Receiver RC402N Remote Control Alkaline Batteries Small Carrying Case Multilanguage CD, Quick user guide and Safety Instructions 5-Year Warranty

Spectra HV302 Key FEATURES and BENEFITS

Composite material housing is rugged,lightweight and IP66 weatherproof making it easy for contractor carry and use in demanding jobsite conditions, reducing repair downtime Fully automatic self-leveling in both horizontal and vertical for fast, accurate setup in horizontal and vertical applications Single-axis manual slope mode with ‘cross-axis’ self-leveling allows grade matching for basic slope work, while maintaining accuracy in the cross-axis Automatic Grade Match which establishes a plane between two different elevations elevations using the RC402N Remote Control and HL760 Receiver Horizontal and Vertical PlaneLok which eliminates errors caused by drift, improper calibration, and environmental conditions using RC402N Remote Control and HL760 Receiver Highly visible 3A/3R beam and superior scanning functions making it easier for interior layout and aligning over longer range job sites (visible diameter of 330-feet) Long-range remote control operation allows convenient access to key functions across the job site Flexible power options, including rechargeable battery pack, AC power and alkaline batteries, combined with low battery warnings, reduces downtime by having multiple power options

Spectra HV302 Laser APPLICATIONS

Interior and exterior, light to medium commercial, and residential construction Leveling and aligning of forms and footers Leveling and aligning of interior walls Installation of ceilings and raised floors Interior finishing work

Spectra Precision HV302 Laser PACKAGE COMPARISON CHART  Part Number Receiver Remote Batteries Vertical Mount Wall Mount Ceilling Target Rod Tripod Small Case Large Case  HV302  HL760  RC402N  Alkaline  YES         YES    HV302-1    RC402N Rechargeable   YES  YES      YES    HV302-2 HR150U RC402N Rechargeable   YES YES     YES    HV302-4 HL760 RC402N Rechargeable YES         YES    HV302-7 HL760 RC402N Rechargeable YES YES YES     YES    HV302-14 CR700 RC402N Alkaline YES          YES    HV302GC-1 HL760 RC402N Alkaline YES     Tenths YES   YES  HV302GC-2 HL760 RC402N Alkaline YES     Inches YES   YES  HV302GC-17 HL760 RC402N Alkaline YES YES YES Tenths YES   YES  HV302GC-27 HL760 RC402N Alkaline YES YES YES Inches YES   YES  HV302-NR HL760   Alkaline YES         YES

Spectra Precision HV302 Red Beam Laser SPECIFICATIONS Leveling Accuracy 1/16“ @ 100 ft, 10 arc seconds Operating Diameter 2,600 feet Rotation 0, 10, 80, 200, 600 rpm Pre-Programmed Scan Sizes 5°, 15°, 45°, 90°, 180° and 0 Laser Type red diode laser 600-680 nm Laser Class Class 3A/3R, max. 5 mW Self-Leveling Range ± 5° Leveling Indicators LED flashes Radio Range (HL760): up to 330 feet Power Source Alkaline Batteries Battery Life 60 hours alkaline Operating Temperature -4°F to 122°F Storage Temperature -4°F to 158°F Tripod Attachments 5/8 x 11 horizontally and vertically Dust and Waterproof Yes - IP66 Weight 6.8 lbs Low Voltage Indication LED battery indicator Low Voltage Disconnection unit shuts off Warranty 5 Years

Spectra HL760 Digital Readout Receiver - INCLUDED in HV302 Package Highly versatile receiver for basic and advanced leveling and aligning applications Works with HV302 in automatic Grade Match and PlaneLok applications HL760 Laserometer Laser Receiver KEY FEATURES: LARGE 5-INCH RECEPTION HEIGHT Digital readout of elevation Exact distance from on-grade displayed Anti-strobe sensor to prevent false reading from jobsite strobe lights Withstands a drop of up to 10-foot Fingerprint function - detects only the laser beam of the paired transmitter   User Benefits: No need to go “on-grade” to measure Saves considerable time Reduces rework by allowing remote monitoring Increases reliability, accuracy and durability   Spectra Precision HL760 Digital Readout Receiver SPECIFICATIONS Digital readout units  mm, cm, feet, inches, fractional inch Reception height  5-inches Six On-grade sensitivities  Ultra fine ~1/32 inch    Super fine ~1.16 inch    Fine ~1/8 inch    Medium ~1/4 inch    Coarse ~1/2 inch    Calibration Mode ~1/64 inch Battery Life (2 AA)  60+ Hours continuous operation Auto shut-0ff  20 minutes / 24 hours Operating Temp  -4°F to 122°F Dust and Waterproof  Yes - IP67 Weight  13.1 oz Warranty  3 Years "No Excuses"   Spectra Precision RC402N Remote Control - INCLUDED in HV302 Laser Package The Spectra RC402N remote control mirrors the basic functionality of the laser keypad and offers additional features using the M and E buttons. This RC402N Remote allows you to control the laser features and functions up to 330-feet away from the laser.  Allowing for one person operation in many jobsite applications. Spectra RC402N Remote Controls... Manual Grade Rotation Speed Scan Mode  Pre-Selected scan sizes 5°, 15°, 45°, 90°, 180°, 0° Automatic Grade Match Automatic Plane Lok Line Scan (Vertical Setup) Beam Plunge (Vertical Setup) Mask Mode  Wireless Remote Specifications Operating Range  330-feet Power Source 2 x 1.5V AA Alkaline Batteries Battery Life 130 Hours Dust and Waterproof Yes - IP66

Trimble warrants the HV302 to be free of defects in material and workmanship for a period of five years. Trimble or its authorized service center will repair or replace, at its option, any defective part, or the entire product, for which notice has been given during the warranty period. If required, travel and per diem expenses to and from the place where repairs are made will be charged to the customer at the prevailing rates. Customers should send the product to Trimble Navigation Ltd. or the nearest authorized service center for warranty repairs or exchange, freight prepaid. Any evidence of negligent, abnormal use, accident, or any attempt to repair the product by other than factory-authorized personnel using Trimble certified or recommended parts, automatically voids the warranty. Special precautions have been taken to ensure the calibration of the laser; however, calibration is not covered by this warranty. Maintenance of the calibration is the responsibility of the user. The foregoing states the entire liability of Trimble regarding the purchase and use of its equipment. Trimble will not be held responsible for any consequential loss or damage of any kind. This warranty is in lieu of all other warranties, except as set forth above, including any implied warranty merchantability of fitness for a particular purpose, are hereby disclaimed. This warranty is in lieu of all other warranties, expressed or implied. We will gladly help you during the warranty process should you have a defective product. Our customers can call 1-877-866-5721 and we will help you locate the nearest service center, along with initial defects and over the counter exchanges that are covered under Trimble's warranty policy.

•
