| Spectra Precision HV302-2 Horizontal / Vertical RED Laser - INTERIOR Package |
General Purpose Construction Laser for Interior and Exterior Applications
includes: Receiver, Remote Control, Wall and Ceiling Mount, Target and Rechargeable Batteries |
| |
| The HV302-2 is capable of handling a wide variety of horizontal, vertical and plumb applications on interior projects. Its high-visibility Red beam enables simultaneous rotating and 90 degree plumb references and is easy to see even in brightly lit interiors |
|
|
|
|
Spectra Precision HV302-2 INTERIOR Laser Package
Kitted with accessories used in indoors applications, the automatic self-leveling Spectra Precision HV302 Horizontal/Vertical Laser is the most rugged laser available, tough enough to handle a wide variety of horizontal, vertical and plumb applications on interior projects. A split beam enables plumb point transfer and 90 degree layout. Even in brightly lit interior conditions, the high visibility beam of the HV302 delivers consistently reliable and accurate performance, enabling you to work faster and smarter.
The rugged HV302-2 laser can withstand drops of up to 3 feet onto concrete and tripod tip-overs up to 5 feet. This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product.
Various HV302-2 packages are offered that are appropriate for interior applications, exterior applications or both |

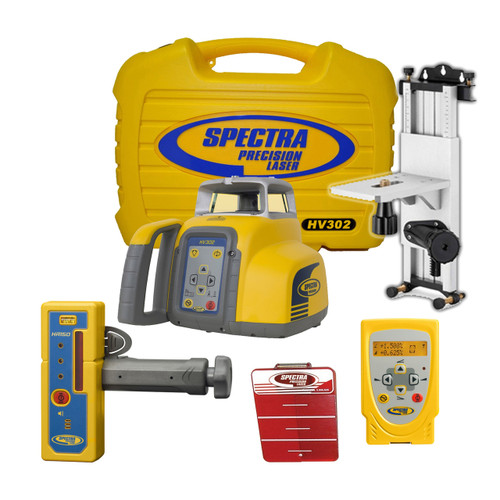

| Spectra Precision HV302-2 INTERIOR Laser Package INCLUDES |
 |
- HV302 Horizontal / Vertical Laser Transmitter
- M302 Wall Mount
- RC402N Radio Remote Control
- HR150U Universal Receiver with Clamp
- 1176 Magnetic Target
- Q104234 NiMH Rechargeable Batteries
- Worldwide Charger 95720-00
- Carrying Case
- Multilanguage CD, Quick user guide and Safety Instructions
- 5-YEAR WARRANTY
|
|
| Spectra HV302-2 Key FEATURES and BENEFITS |
- Composite material housing is rugged,lightweight and IP66 weatherproof making it easy for contractor carry and use in demanding jobsite conditions, reducing repair downtime
- Fully automatic self-leveling in both horizontal and vertical for fast, accurate setup in horizontal and vertical applications
- Single-axis manual slope mode with ‘cross-axis’ self-leveling allows grade matching for basic slope work, while maintaining accuracy in the cross-axis
- Highly visible 3A/3R beam and superior scanning functions making it easier for interior layout and aligning over longer range job sites (visible diameter of 330-feet)
- Long-range remote control operation allows convenient access to key functions across the job site
- Flexible power options, including rechargeable battery pack, AC power and alkaline batteries, combined with low battery warnings, reduces downtime by having multiple power options
|
| Spectra HV302-2 Laser APPLICATIONS |
- Interior, light to medium commercial, and residential construction
- Leveling and aligning of forms and footers
- Leveling and aligning of interior walls
- Installation of ceilings and raised floors
- Interior finishing work
|
| |
|
|
| |
| Spectra Precision HV302-2 Red Beam Laser SPECIFICATIONS |
| Leveling Accuracy |
1/16“ @ 100 ft, 10 arc seconds |
| Operating Diameter |
2,600 feet |
| Rotation |
0, 10, 80, 200, 600 rpm |
| Pre-Programmed Scan Sizes |
5°, 15°, 45°, 90°, 180° and 0
|
| Laser Type |
red diode laser 600-680 nm |
| Laser Class |
Class 3A/3R, max. 5 mW |
| Self-Leveling Range |
± 5° |
| Leveling Indicators |
LED flashes |
| Radio Range |
(HL760): up to 330 feet |
| Power Source |
Alkaline Batteries |
| Battery Life |
60 hours alkaline |
| Operating Temperature |
-4°F to 122°F |
| Storage Temperature |
-4°F to 158°F |
| Tripod Attachments |
5/8 x 11 horizontally and vertically |
| Dust and Waterproof |
Yes - IP66 |
| Weight |
6.8 lbs |
| Low Voltage Indication |
LED battery indicator |
| Low Voltage Disconnection |
unit shuts off |
| Warranty |
5 Years |
|
| |
| Spectra Precision HR150U Receiver- INCLUDED in HV302-2 Laser Package |
|
|
|
| |
