Spectra Precision HV302G-7 Green Beam Laser Interior / Exterior Package with Deluxe HL760U Receiver

Spectra Precision HV302G-7 Multipurpose Green Beam Interior Laser
The automatic self-leveling Spectra Precision® HV302G Horizontal/Vertical Laser offers exceptional versatility and superior green beam visibility for increased productivity at a great value. The HV302G is capable of handling a wide variety of horizontal, vertical and plumb applications optimized for interior projects. A split beam enables plumb point transfer and 90 degree layout. Even in brightly lit interior conditions, the high visibility green beam of the HV302G delivers consistently reliable and accurate performance, enabling you to work faster and smarter.

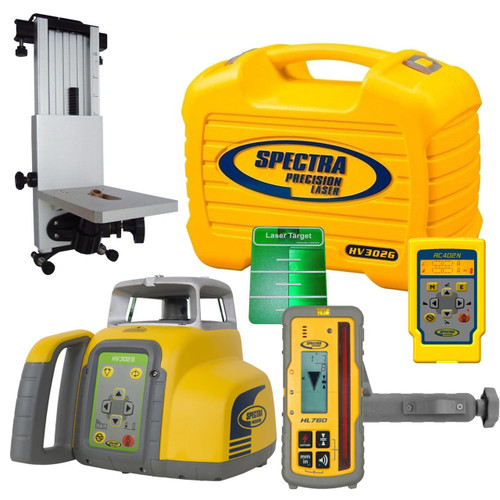

   Spectra Precision HV302G-7 Green Beam Laser Package INCLUDES

• Spectra HV302G Interior Green Beam Horizontal / Vertical Laser
• Spectra RC402N Remote Control
• Spectra HL760U Deluxe Laser Receiver
• Spectra M302 Wall Mount

• Spectra Q104124  Magentic Green Target Plate

• 10 Ah NiMH Rechargeable Batteries

• Battery Charger

• Small Laser Carrying Case



Spectra Precision HV302G-7 Laser APPLICATIONS

• Interior, light to medium
• commercial and residential construction
• Squaring/layout
• Leveling and aligning of interior walls
• Installation of ceilings and raised floors
• Interior finishing work
• Vertical alignment
• Plumb

Spectra Precision HV302G-7 Green Laser OVERVIEW
The automatic self-leveling Spectra Precision® HV302G Horizontal/Vertical Laser offers exceptional versatility and superior green beam visibility for increased productivity at a great value.

The HV302G is capable of handling a wide variety of horizontal, vertical and plumb applications optimized for interior projects. A split beam enables plumb point transfer and 90 degree layout. Even in brightly lit interior conditions, the high visibility green beam of the HV302G delivers consistently reliable and accurate performance, enabling you to work faster and smarter.

Extremely rugged, the laser can withstand drops of up to 1 meter (3 feet) onto concrete and tripod tip-overs up to 1.5 meter (5 feet), resulting in reduced downtime and lower repair costs. Even in
the toughest jobsite conditions, the laser delivers reliable, accurate performance to increase overall productivity and cost-savings.

The HV302G features a simple keypad with arrow buttons, making it easy to use. The laser can be configured with an HR150U receiver or the new HL760U Universal Digital Readout Receiver. By utilizing the radio communication between HV302G and the optional HL760U receiver, a reference for a sloped ceiling or line points for drywall layout can be quickly and easily established. The HL760U receiver is unique as it will work with any green, infra-red or red beam laser.

Spectra Precision HV302G-7 Green Laser KEY FEATURES

• Automatic horizontal and vertical self-leveling
• Accuracy 1/16-inch @ 100 feet (1.5mm @ 30 m)
• Working visible range of 250 feet (75 m) radius
• High-visibility beam – easily visible even in brightly lit conditions
• Split beam – enables plumb point transfer and 90-degree layout
• Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
• Long range RC402N Radio remote control
• HR150U - Interior Receiver with highly visible LEDs and built-in Magnetic Mount
• Radio communication between the HL760U DRO receiver and the laser provides automatic Grade Matching and PlaneLok
• Extremely durable and portable
• 3 Year warranty

Spectra Precision HV302G-7 Green Laser USER BENEFITS

• Complete interior system in a case - carrying case securely holds all components, wall mount, green target
• Easy to transport, easy to carry, easy to store
• Energy-efficient design offers long battery life
• Highly durable construction enables the HV302G to survive a drop up to 3-feet (1 m) onto concrete
• Radio remote control offers access to all laser functions throughout the jobsite.

Included Spectra HL760U Digital Read-Out Receiver OVERVIEW
Highly versatile digital readout receiver accepts red beam and green beam rotating lasers for basic and advanced leveling and aligning applications.

The HL760U Digital Readout Receiver is a highly versatile laser receiver for basic and advanced leveling and aligning applications. It is designed for general, concrete and site preparation contractors. The HL760U measures elevations across the site, and is ideal for use with any rotating transmitter including red beam and green beam lasers.

The HL760U features a digital readout of elevation that provides a numeric display of ± 2 inches. The readout is displayed on the large front and rear LCD’s and shows exactly how far the elevation is from on-grade for fast and easy cut/fill readings. Accurate measurements can be made without moving the rod clamp, saving time and increasing productivity. Selectable units of measure can be displayed meeting your application - mm, cm, ft, in or fractional inches.

A 5 inch reception height, more than double the industry standard, allows quick acquisition of the laser beam. An anti-strobe sensor prevents false readings from site strobe lights.

Radio communication allows working with another HL760U or HL760 for long range remote display and monitoring capability. A new function termed “Fingerprinting” links the receiver with a particular laser. Once the receiver is paired with the laser transmitter, the receiver has the ability to filter out other lasers that strike the receiver and only accept the laser that it is paired with.

The Digital Readout Receiver is designed to survive the tough construction site conditions; it is totally waterproof and can withstand a drop of 10 feet onto concrete. The HL760U offers a 3-year “No Excuses” warranty.

     SPECTRA PRECISION LASER SPECIFICATIONS
Spectra Precision HV302G Laser SPECIFICATIONS

• Leveling accuracy1,3: ± 1.5 mm/30 m, 1/16-inch @ 100 ft, 10 arc seconds
• Operating visible radius1,2: 250 feet (75 m)
• Rotation: 0, 10, 80, 200, 600 rpm
• Pre-selected scan sizes: 5°, 15°, 45°, 90°, 180° and 0
• Laser type: green diode laser 520 nm
• Laser class : Class 3A/3R, max. 5 mW
• Self-leveling range: ± 5° (±9%)
• Leveling indicators: LED flashes
• Radio range (HL760U): up to 100 m (330 ft)
• Power source: 10.000 mAh NiMH battery pack
• Battery life1: 30 hours NiMH; 45 hours alkaline
• Operating temp.: 0°C to 40°C (-4°F to 122°F)
• Storage temp.: -20°C to 70°C (-4°F to 158°F)
• Tripod attachments:
• 5/8 x 11 horizontally and vertically
• Dust and waterproof: Yes - IP66
• Weight: 3.1 kg (6.8 lbs)
• Low voltage indication: LED battery indicator
• Low voltage disconnection: unit shuts off
• Warranty: 3 Years

Spectra Precision HL760U (Optional Receiver) OVERVIEW

• Highly versatile receiver for basic and advanced leveling and aligning applications
• Works with HV302G in automatic Grade Match and PlaneLok (H + V) applications
• Key Features:
• Digital readout of elevation
• Exact distance from on-grade displayed
• Anti-strobe sensor to prevent false reading from jobsite strobe lights
• Large reception height to ease beam reception
• Withstands a drop of up to 3 m (10 ft)
• User Benefits:
• No need to go “on-grade” to measure
• Saves considerable time
• Reduces rework by allowing remote monitoring
• Increases reliability, accuracy and durability

Spectra Precision HL760U (Optional Receiver) SPECIFICATIONS

• Digital readout units: millimeters, centimeter, feet, inch, fractional-inch
• Reception height: 127 mm (5 inches)
• Six On-grade sensitivities:
• Ultra Fine 0.5 mm (~1/32 inch)
• Super Fine 1 mm (~1/16 inch)
• Fine 2 mm (~1/8 inch)
• Medium 5 mm (~1/4 inch)
• Coarse 10 mm (~1/2 inch)
• Calibration Mode 0.1 mm (~1/64 inch)
• Battery life1 (2 x AA): 60+ hours continuous operation
• Auto shut-off: 30 minutes/24 hours
• Operating temp.: -20°C to 50°C (-4°F to 122°F)
• Dust and waterproof: Yes - IP67
• Weight: 0.37 kg (13.1 oz)
• Warranty: 3 Years “No Excuses”

Spectra Precision RC402N Remote Control SPECIFICATIONS

• Operating range1,3: up to 100 m (330 ft)
• Power source: 2 x 1.5V AA alkaline batteries
• Battery life1: 130 hours
• Dust and waterproof: Yes - IP66
• Weight: 0.26 kg (0.57 lbs)

Spectra Precision HR150U Interior Receiver FEATURES

• Features a 3 channel dual-sided LED display that can be easily seen over long distances
• Built in magnet allows the receiver to be easily mounted to ceiling grid or drywall track
• Marking notches on both sides make it easy to mark alignments and elevations
• Strong composite housing offers protection against damage due to dropping for reduced maintenance and repair

Spectra Precision HR150U Interior Receiver SPECIFICATIONS

• LED channels (front and rear): 3
• Red : High
• Red : Low
• Green : “On-Grade”
• On-Grade Sensitivity: 1/8-inch (3 mm)
• Power source: 2 x 1.5V AA alkaline batteries
• Battery life1: 70+ hours
• Dust and waterproof: Yes - IP67
• Weight: 0.3 kg (0.75 lbs)

(1) at 21° Celsius (70° F)
(2) under optimal atmospheric circumstances
(3) along the axis
