| Spectra Precision HV302GC-26 Horizontal / Vertical RED Laser Package |
General Purpose Construction Laser for Interior and Exterior Applications
includes: RC402N Remote, CR700 Machine or Rod Mountable Digital Receiver,
GR151 Measuring Rod in Inches, Aluminum Tripod and Alkaline Batteries |
| |
| The HV302GC-26 is capable of handling a wide variety of horizontal, vertical and plumb applications in both interior and exterior projects. Its high-visibility Red beam enables simultaneous rotating and 90 degree plumb references and is easy to see even in brightly lit interiors |
|
|
|
|
Spectra Precision HV302GC-26 Laser Package
Whether your job is indoors or outdoors, the automatic self-leveling Spectra Precision HV302GC-26 Horizontal/Vertical Laser is the most rugged laser available, tough enough to handle a wide variety of horizontal, vertical and plumb applications in both interior and exterior projects. A split beam enables plumb point transfer and 90 degree layout. Even in brightly lit interior conditions, the high visibility beam of the HV302 delivers consistently reliable and accurate performance, enabling you to work faster and smarter.
The rugged HV302GC-26 laser can withstand drops of up to 3 feet onto concrete and tripod tip-overs up to 5 feet. This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product.
Various HV302 packages are offered that are appropriate for interior applications, exterior applications or both |

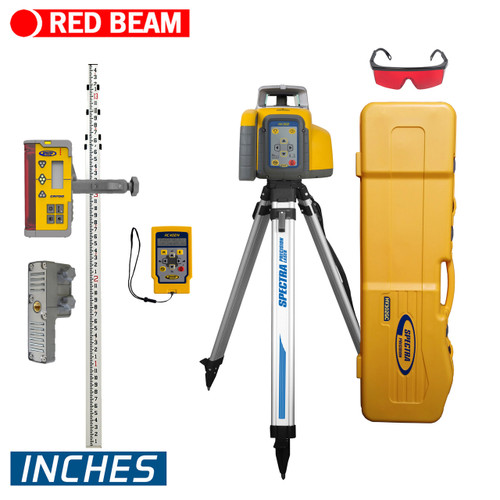

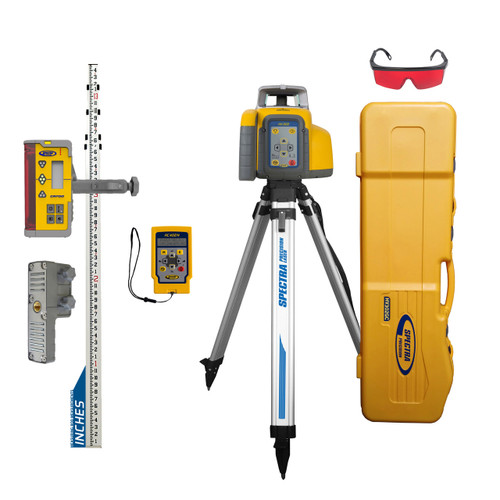

| Spectra Precision HV302GC-26 Exterior Laser Complete Package INCLUDES |
 |
- HV302 Horizontal / Vertical Red Laser Transmitter
- CR700 Machine or Rod Mountable Laser Receiver
- C70 Rod Clamp for Receiver
- C71 Magnetic Mount for Machine Applications
- RC402N Remote Control
- GR152 Grade Rod with Measurements in INCHES - Aluminum 15 foot
- Aluminum Tripod Q104025
- Alkaline Batteries
- "All in One" System Case - LARGE Carrying Case
- Multi language CD User Guide
- Red Laser Glasses Q100206
- Safety instructions
- Warranty 5-Year
|
|
| Spectra HV302GC-26 Key FEATURES and BENEFITS |
- Composite material housing is rugged,lightweight and IP66 weatherproof making it easy for contractor carry and use in demanding jobsite conditions, reducing repair downtime
- Fully automatic self-leveling in both horizontal and vertical for fast, accurate setup in horizontal and vertical applications
- Single-axis manual slope mode with ‘cross-axis’ self-leveling allows grade matching for basic slope work, while maintaining accuracy in the cross-axis
- Automatic Grade Match which establishes a plane between two different elevations elevations using the RC402N Remote Control and CR700 Receiver
- Horizontal and Vertical PlaneLok which eliminates errors caused by drift, improper calibration, and environmental conditions using RC402N Remote Control and CR700 Receiver
- Highly visible 3A/3R beam and superior scanning functions making it easier for interior layout and aligning over longer range job sites (visible diameter of 330-feet)
- Long-range remote control operation allows convenient access to key functions across the job site
- Flexible power options, including rechargeable battery pack, AC power and alkaline batteries, combined with low battery warnings, reduces downtime by having multiple power options
|
| Spectra HV302GC-26 Laser APPLICATIONS |
- Interior and exterior, light to medium commercial, and residential construction
- Leveling and aligning of forms and footers
- Leveling and aligning of interior walls
- Installation of ceilings and raised floors
- Interior finishing work
|
| |
|
|
| |
| Spectra Precision HV302 Red Beam Laser SPECIFICATIONS |
| Leveling Accuracy |
1/16“ @ 100 ft, 10 arc seconds |
| Operating Diameter |
2,600 feet |
| Rotation |
0, 10, 80, 200, 600 rpm |
| Pre-Programmed Scan Sizes |
5°, 15°, 45°, 90°, 180° and 0
|
| Laser Type |
red diode laser 600-680 nm |
| Laser Class |
Class 3A/3R, max. 5 mW |
| Self-Leveling Range |
± 5° |
| Leveling Indicators |
LED flashes |
| Radio Range |
(HL760): up to 330 feet |
| Power Source |
Alkaline Batteries |
| Battery Life |
60 hours alkaline |
| Operating Temperature |
-4°F to 122°F |
| Storage Temperature |
-4°F to 158°F |
| Tripod Attachments |
5/8 x 11 horizontally and vertically |
| Dust and Waterproof |
Yes - IP66 |
| Weight |
6.8 lbs |
| Low Voltage Indication |
LED battery indicator |
| Low Voltage Disconnection |
unit shuts off |
| Warranty |
5 Years |
|
| |
| Spectra CR700 Machine or Rod Mountable Receiver - INCLUDED in HV302GC-26 Package |
The CR700 includes a clamp to attach to grade rods. It has the same “light bar” technology that is included in HL receivers and will deliver extremely accurate and consistent results. The CR700 also attaches to machines with the included new magnetic mount, which is 25% stronger than the CR600 magnetic mount resulting in stable machine mounting and a reduction in errors. With super bright directional LEDs, the CR700 is ideal for entry-level machine grade display, specifically on mini-excavators and backhoes. This provides instant grade information to the operator and eliminates the need for a rod man in the trench.
|
 |
CR700 Laserometer Laser Receiver KEY FEATURES:
- Bright LED Arrow Displays – turn your head when you first turn on the CR700 because the new red/green/blue LED arrows are super bright and visible in all conditions
- Magnetic Clamp – the new C71 magnetic clamp is 25% stronger than the CR600 magnetic clamp. It will not slip on the machine no matter how rough the work is.
- Light Bar Technology – patented laser reception technology delivers the most accurate, consistent and reliable performance.
- Laser Radio – the CR700 is radio-compatible with the GL400N / GL600N series grade lasers and the HV302. This enables the use of time saving functions such as Grade Match, Fingerprinting, PlanLok and Axis Alignment.
- IP67 – dustproof, waterproof, weatherproof
- 10-foot Drop Guarantee – almost destruction proof, extremely robust, eliminates downtime
- Digital Read-Out – the CR700 provides the exact distance from grade numerically
- Remote Display – pair the CR700 receiver with an HL760 receiver to be used as a remote display — useful for machine operators and site supervisors
- Fingerprint On/Off – a menu function allows the CR700 to enable or disable Fingerprinting
- Backlight – to view the laser receiver in the dark
- Vertical Drift Alarm – When using lasers in vertical mode, after setting up your line, let the laser receiver warn you if the laser has been disturbed
- 3-Year Warranty – competitors are not even close on laser receivers
CR700 Machine Display Laser Receiver Applications
- Machine Display Receiver attached to...
- Backhoe, Skid Steer or Mini-Excavator for Grading or Excavating
- Grade Rod Mounted Receiver for Elevation Control.
- Vertical Alignment
- Digging footings
- Basement excavation
- Checking sub-base materials
- Setting and Checking elevations
- Leveling and Aligning forms
- Screeding concrete
|
| Spectra Precision CR700 Receiver TECHNICAL DATA |
- Working Radius: (Laser dependent): 3 ft - 1500 ft
- Laser Detection Height: 5-INCH
- Numeric Readout Height: 4-INCH
- Radio Working Radius: Up to 660 ft, depending on orientation, conditions and paired device
- Accuracy (Deadband): Ultra-fine: 0.5 mm 0.02 in 1/32 in; Super-fine: 1.0mm 0.05in 1/16in; Fine: 2.0mm 0.10in 1/8-inc;h Medium: 5.0mm 0.20in 1/4-inch; Coarse: 10.0mm 0.50in 1/2-inch; Machine: 25.0mm 1.00in 1-inch;
- Reception Angle: 200° (laser and distance dependent)
- Detectable Spectrum: 610 nm ... 780 nm
- Beeper Volumes: Loud = 110 dBA; Medium = 95 dBA; Low = 65 dBA
- Power Supply: 3 x 1.5 Volt “AA” batteries
- Battery Life: 60+ hours; 16 continuous backlight
- Automatic Shut Off:: 30 minutes
- Environmental: Waterproof, Dustproof to IP67
- Product Weight: 0.5 kg (1.1 lb)
- Product Size: 9.9 x 19.8 x 3.3 cm (3.9 x 7.8 x 1.3 in)
|
| |

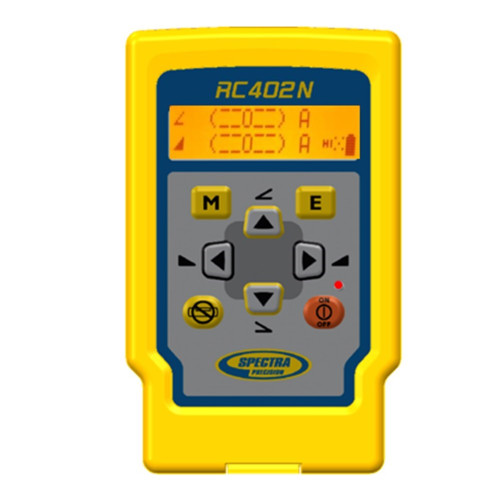

| Spectra Precision RC402N Remote Control - INCLUDED in HV302GC-26 Laser Package |
| The Spectra RC402N remote control mirrors the basic functionality of the laser keypad and offers additional features using the M and E buttons. This RC402N Remote allows you to control the laser features and functions up to 330-feet away from the laser. Allowing for one person operation in many jobsite applications. |
 |
Spectra RC402N Remote Controls...
- Manual Grade
- Rotation Speed
- Scan Mode Pre-Selected scan sizes
- 5°, 15°, 45°, 90°, 180°, 0°
- Automatic Grade Match
- Automatic Plane Lok
- Line Scan (Vertical Setup)
- Beam Plunge (Vertical Setup)
- Mask Mode
|
| Wireless Remote Specifications |
| Operating Range |
330-feet |
| Power Source |
2 x 1.5V AA Alkaline Batteries |
| Battery Life |
130 Hours |
| Dust and Waterproof |
Yes - IP66 |
|
|
|
|
| |
