SPECTRA LL1505C-19S laser package with Deluxe HL760 Receiver
Long-range, highly accurate leveling solution |
|
Spectra LL1505C Laser - Precision Leveling for Concrete and Site Prep
The Spectra Precision® LL1505C is a rugged, fully automatic self-leveling laser level designed for medium-range, high-accuracy leveling in concrete work, site preparation, and general construction applications. Featuring easy grade matching and single-axis manual slope control via intuitive arrow buttons, it ensures seamless operation while keeping the second axis fully self-leveled.
A standout feature of this package is the Deluxe HL760 Receiver, offering a large 5-inch reception height for improved accuracy and range. Built to withstand tough job site conditions, the LL1505C runs on reliable alkaline batteries, making it a durable and dependable choice for professionals who demand precision.
|
|
|
|
|
|
No Cost 5-Year Warranty offers no repair charge for parts and labor of the laser.
If Laser Unit fails in the first FIVE years - send it back and get it repaired for free.
|
|
Built for duribility and precision the Spectra Precision® LL1505C Laser Level features a rugged design with a metal sunshade, ensuring superior drop and weather protection (IP66-rated) for extreme job site conditions. Built for reliability and durability, it withstands heavy rain, mud, and concrete splashes, which can be easily washed off with a hose. Engineered to reduce downtime, the LL1505C survives drops of up to 3 feet onto concrete and tripod tip-overs from 5 feet, making it one of the most durable laser levels in its class.
The LL1505C is designed for ease of use—simply turn it on, it self-levels, and it spins. With the included Laser Manager app for iOS and Android, users can control the laser remotely, adjust settings, and streamline operations directly from their mobile device. The new laser managager is designed for efficiency and ease of use, the LL1505C self-levels automatically—just turn it on, and it’s ready to work. A standout feature of this model is the included Laser Manager app for iOS and Android, which enables single-person slope adjustments. This eliminates the need for an extra rod person, making manual slope control more efficient and cost-effective.
Spectra LL1505C-19S Key Features:
- Laser Manager App – Control the laser remotely from any iOS or Android device for increased efficiency.
- Fully Automatic Self-Leveling – Simple setup with automatic leveling for fast and accurate results.
- Manual Grade Matching – Adjust slope effortlessly using the arrow buttons on the transmitter while the other axis remains self-leveled.
- Extreme Durability – Withstands 3-foot concrete drops and 5-foot tripod tip-overs, reducing repair costs.
- All-Weather Performance – IP66-rated for full protection against dust, heavy rain, and job site conditions.
- Large Reception Window – Includes the Deluxe HL760 Receiver with a 5-inch reception height for enhanced range and accuracy.
- Deluxe Aluminum Tripod – Contractor-grade latches ensure stability, and the adjustable height from 40 to 64 inches allows for versatile setup on uneven terrain.
- Premium 16-Foot Aluminum Grade Rod – Features feet and tenths measurements for precise leveling and grading, making it an essential tool for accurate job site readings.
With its industry-leading durability, advanced app control, and user-friendly operation, the Spectra LL1505C is the ideal long-range leveling solution for concrete and site preparation professionals.
|

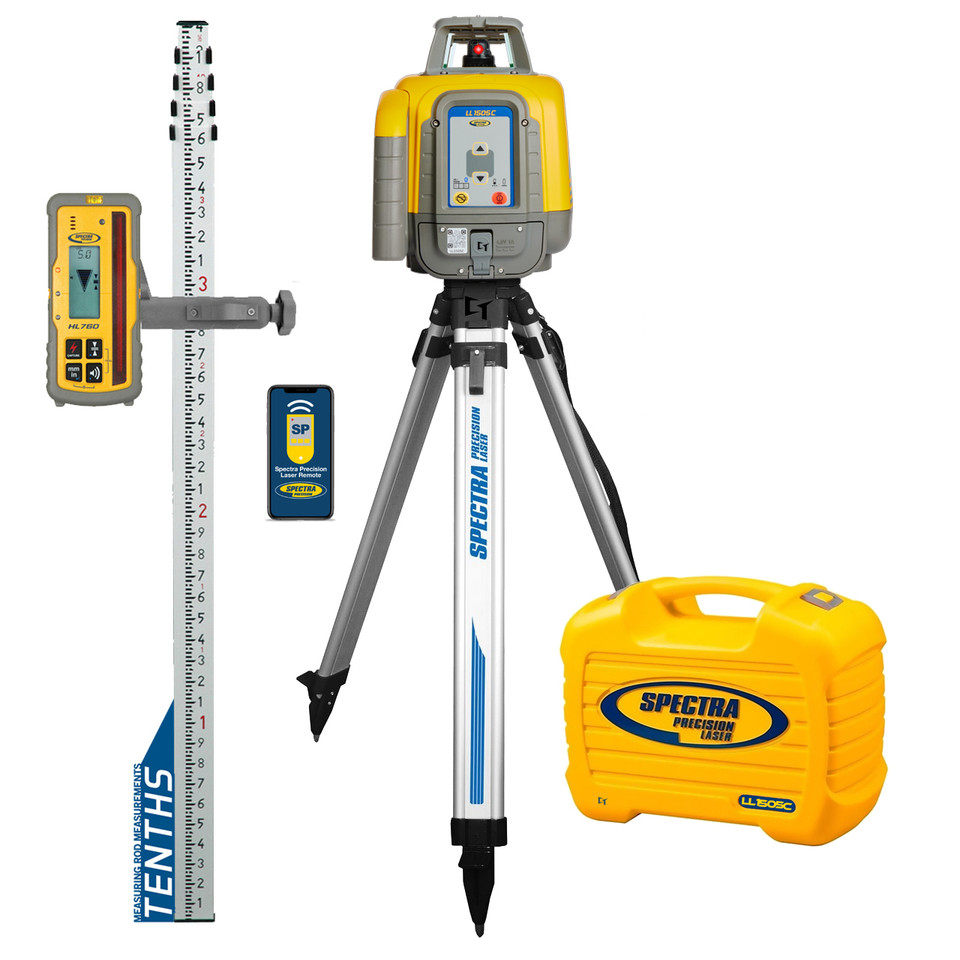

| Spectra Precision LL1505C-19S Exterior Laser Package INCLUDES |
 |
- LL505C Laser Level
- HL760 Deluxe Laserometer Receiver (Large 5-inch Capture Height)
- Rod Clamp C70
- Laser Manager (IOS / Android) Control your laser remotely - Bluetooth
- Rechargable NiMH Batteries - B10
- Battery Charger - CH10
- 16-Foot Grade Rod TENTHS - 11-816T
- Aluminum Tripod - ALQR20
- Small Laser Protective Carrying Case 100981
- Multi language CD, Quick user guide and Safety Instructions
- 5-Year Warranty
|
| View additional LL1505C PACKAGE OPTIONS Below ⮟ |
|
A key highlight of this LL1505C-19S laser package is the Deluxe HL760 Laser Receiver, designed for maximum accuracy, extended range, and advanced functionality. Featuring a large 5-inch reception height, the HL760 ensures greater accuracy over longer distances, making it ideal for large-scale grading and excavation projects.
When paired with the Spectra LL1505C, the HL760 unlocks advanced capabilities, including:
- Grade Match – Automatically calculates and locks onto an existing slope, eliminating the need for manual slope calculations.
- PlaneLok – Locks the laser beam onto a fixed elevation or slope reference, preventing drift caused by temperature fluctuations or vibrations, ensuring consistent and precise grading.
- Fingerprinting Technology – Ensures the HL760 only detects the paired LL1505C laser signal, preventing interference from other lasers on busy job sites.
Built to withstand harsh job site conditions, the LL1505C is IP66-rated for dust and water protection, making it a rugged, durable, and dependable choice for contractors and surveyors who demand precision and efficiency.
|
| Spectra Precision LL1505C Laser APPLICATIONS |
- General elevation control
- Checking and setting elevations for small to medium job sites
- Leveling forms and footers
- Estimating cut and fills
- Excavations
- Basic slopes for driveways and ramps
|
| Spectra Precision LL1505C Laser KEY FEATURES |
- Automatic self-leveling
- Accuracy 1/16 inch @ 100 ft
- Working range of 2,600 ft diameter
- Simple keypad for easy grade matching
- Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
- Long range Radio remote control (optional)
- LL1505C-17 and LL1505C-27 Complete kits available and fits in one case with tripod and grade rod
- Extremely durable and portable
- 5 Year warranty
|
| Spectra Precision LL1505C Laser BENEFITS |
- Model LL1505C includes carrying case securely holds Laser, receiver and receiver clamp
- Easy to transport, easy to carry, easy to store
- Highly durable construction
- Superior drop and weather protection.
- Fully automatic self-leveling
- Superior drop and weather protection.
- Energy-efficient design offers long battery life
- Extremely versatile with single-axis manual slope
- Cross-axis self-leveling allows for grade matching on the job site.
- Highly durable construction enables the LL1505C to survive a drop up to 3 feet onto concrete
- OPTIONAL Radio remote control offers access to all laser function from every jobsite place
|
| |
| Spectra Precision LL1505C Red Beam Laser SPECIFICATIONS |
| Laser Type |
red diode 630 - 643 nm, Class 2 |
| Laser Orientation |
Horizontal Only |
| Laser Accuracy |
±1/16-inch at 100-feet ((10 Arc Seconds)) |
| Operating Range |
2,600 foot diameter with HL450 Receiver
4,000 foot diameter with HL760 Receiver ((Optional))
|
(optional) Remote Control
Operating Range |
260 foot |
| Compensation Method |
Electronic Self-Leveling |
| Self-Leveling Range |
± 5°, (±8.7%) |
Drop Height onto Concrete Performance
|
3 foot
|
Single Axis Manual Slope
|
Yes (with self-leveling mode on the second axis)
|
Out of level Warning
|
Rotor stops, red out-of-level HI/MAN-LED flashes
|
Power Source
|
10,000 mAh NiMH Rechargable Battery Pack
4 x D-Cell Alkaline Batteries
|
Battery Life
|
Rechargeable - up to 55 hours
Alkaline - 60 hours
|
Battery Status LED
|
Flashing red LED
|
Rotation Speed
|
300 RPM, 600 RPM and 900 RPM
|
| Storage Temperature |
-13°F to 158°F |
| Operating Temperature |
-4°F to 122°F |
| Dust and Waterproof |
Yes - IP66 |
| Tripod Attachments |
5/8 x 11 horizontally and vertically |
| Weight |
5.9 lbs |
Size
|
10.7 L x 7.7 W x 7.9 H inch
|
| Warranty |
5 Years |
|
| |
| Spectra HL760 Digital Readout Receiver - INCLUDED in LL1505C-19S Laser Package |
| |
|
| Spectra HL760 Premium HL760 Receiver - INCLUDED in LL1505C-19S Laser Package |
The Spectra Precision HL760 is not your average laser receiver—this is a high-end digital readout receiver built for contractors who demand speed, accuracy, and reliability in the toughest job site conditions. It’s packed with features that make this LL1505C kit stand out as the obvious choice for pros who want the best.
|
 |
-
Digital Readout of Elevation – Displays not only arrows for high or low, but also the exact measurement off-grade, eliminating guesswork and saving time.
-
Large 5-Inch Reception Height – Quickly locks on to the laser beam and stays locked, even in challenging conditions.
-
Built-In Radio Communication – The HL760 / HL760U / CR700 receivers can communicate wirelessly with HV1305C, LL1505C, LL300S, LL400HV, HV302, GL412N / GL422S, GL612N / GL622N, and UL633N laser transmitters—offering unmatched versatility and compatibility.
-
330-Foot Radio Range – Long-range wireless capability allows for machine control, remote grade checking, and live elevation monitoring across the job site.
-
Anti-Strobe Protection – Filters out construction strobe lights, so your readings are accurate, even in busy environments.
-
Durable and Rugged – Withstands drops up to 10 feet onto concrete, and built with dustproof and weather-resistant housing for maximum uptime.
-
Smart Capture Mode – Ideal for deep excavation work—lets you lock onto the beam and automatically shows how far off-grade you are, without having to adjust the receiver.
-
C70 Rod Clamp Included – Comes with a bubble vial and patented reversible jaw for fast and secure mounting to round or square grade rods.
-
Backed by Spectra’s industry-leading 3-Year “No Excuses” Warranty.
|
LL1505C when used with the HL760 DRO receiver, several advanced features can be utilized:
- Grade Match: Wireless communication between the HL760 receiver and the transmitters provide automatic Grade Match which connects different elevations and will actually calculate and display grade values between two points when using the GL412N and GL422N.
- PlaneLok: For applications that require maximum stability and accuracy is available on the horizontal Y-axis and in both vertical planes. PlaneLok automatically locks the beam on the DRO receiver and keeps it on-grade, reducing typical environmental factors that may induce an error.
PlaneLok for vertical alignments provides quick, accurate set-up and easy control.
- Also provides the ability to quickly set up a vertical plumb or slope reference.
|
|
|
Spectra HL760 Digital Readout Receiver SPECIFICATIONS
|
|
| Digital readout units |
mm, cm, feet, inches, fractional inch |
| Reception height |
5-inches |
| Six On-grade sensitivities |
Ultra fine ~1/32 inch |
| |
Super fine ~1.16 inch |
| |
Fine ~1/8 inch |
| |
Medium ~1/4 inch |
| |
Coarse ~1/2 inch |
| |
Calibration Mode ~1/64 inch |
| Battery Life (2 AA) |
60+ Hours continuous operation |
| Auto shut-0ff |
20 minutes / 24 hours |
| Operating Temp |
-4°F to 122°F |
| Dust and Waterproof |
Yes - IP67 |
| Weight |
13.1 oz |
| Warranty |
3 Years "No Excuses" |
|
|
|
|
| |
| SPECTRA LL300N VS LL1505C : FEATURES |
LL300N |
LL1505C |
| Operating Range (Diameter) feet |
1,650 |
4,000 |
| ACCURACY at 100 feet |
3/32 inch |
1/16 inch |
| Weight |
6 |
7 |
| WARRANTY with "Knock Over" Drop Specification |
✅ |
✅ |
| Horizontal Electronic self-leveling |
✅ |
✅ |
| Water Resistant / 'Rain Proof' |
✅ |
✅ |
| Variable Speed |
NO |
300, 600, 900 |
Bluetooth Remote Control
Allows for single-slope manual slope adjustment
|
❌ |
✅ |
Manual 'Slope' mode with Cross-Axis Self Leveling
|
with (OPTIONAL)
RC601 remote |
✅
Laser Manager APP |
NiMH Rechargeable battery option
|
(OPTIONAL) |
(STANDARD) |
"Laserometer" Receiver
(TWICE the PhotoCell length + Numeric Readout) |
✅ |
✅ |
5 YEAR 'No Cost' LASER WARRANTY
|
✅ |
✅ |
| |
|
|
|
| FREE Laser Remote Control Application for LL1505C-19S |
 |
The Laser Remote App controls your Spectra Precision Laser. It is easy and intuitive to use.
Use your smart device to have a large graphical interface on hand to change settings, rotation speed or grade value of your laser when the feature is available in your laser.
The Spectra Precision laser remote app connects to the GL1425C, HV1305C, HV1305GC and LL1505C directly.
For the LL1505C this app allows you to set manual slope with one person up to 150 feet.
|
| OPTIONAL RC402N Remote Control for LL1505C Series Packages |
| This Spectra RC402N Remote control allows for the user to control manual slope with one person from distances up to 330-feet. Without this remote control two people are need to adjust manual slope. Access and adjust the below features using the remote control. The remote control mirrors the basic functionality of the LL300S keypad. |
 |
RC402N allows you to access and adjust these features
remotely on the LL300S Series Spectra Laser
- Adjustment of Slope Manually.
- Mask Mode Settings
- About LS
- Runtime
- Radio Channel Settings
- HI Alert Sensitivity Settings (HI = Height of Instrument)
- View HI Status
- Callibration Settings
- Language Settings
- View Battery Status
|
|
Manual Grade Match: (1)Set up the laser at the first elevation point and align it to the second desired slope/elevation hub using the sighting guides on top of the sunshade. (2) Check the laser beam elevation close to the laser. (3)To activate the Y-axis single slope mode, press the manual mode button twice. The red and green LED flash simultaneously (once a second). (4)Set the grade rod with the receiver attached to it on the second desired slope/elevation hub. NOTE: DO NOT CHANGE THE RECEIVER POSITION ON THE ROD. (5)Using the remote control press the up and down arrow buttons until you get an on-grade reading on the receiver. (6)You now can check elevations along the direction of the slope. NOTE: When in Slope Mode the cross axis / X-axis will self level to maintain a consistent elevation of the sloped reference plane.
Mask Mode: allows you to electronically turn off the laser beam (electronic shutters) in up to 3 lighthouse windows to prevent interference with other receivers on on the jobsite.
HI Alert: Electronically monitors the height of the instrument. If the height changes the laser will stop and you will be notified via tone and visibly on both the laser and the remote control.
Language Options: EN, DE, IT, FR, ES, PT, NL, DA, NO, SV, FL, PL, TR and CZ
|
|
