SPECTRA LL1505C-X2 laser package w/HL450 Receiver, Rod INCHES and Tripod
Medium-range, highly accurate leveling solution
Includes: Laser, HL450 Receiver and Bracket, Rod INCHES, H-D Tripod and Small Case |
Medium-range, highly accurate leveling solution
The Spectra Precision® LL1505C is a ruggedized, fully automatic self-leveling Laser Level for all general concrete and site preparation applications. With the addition of the arrow buttons on the transmitter, grade matching and single axis manual slope can be performed whilst the other axis remains self leveled. A standout feature of this LL1505C package is the Deluxe HL450 Receiver with large 4-inch reception height. This laser is powered by Long-Run Rechargeable Batteries
|
|
|
|
|
|
No Cost 5-Year Warranty offers no repair charge for parts and labor of the laser.
If Laser Unit fails in the first FIVE years - send it back and get it repaired for free!
|
|
The Spectra Precision® LL1505C Laser Level features a rugged design with a metal sunshade that provides superior drop and weather protection (IP66). Designed for durability and reliability, the IP66 protection rating allows the Spectra Precision® LL1505C to be operated in adverse environmental conditions, such as heavy rain. Mud and concrete can be washed off with a hose. The LL300S can withstand drops of up to 3 feet onto concrete and tripod tip-over up to 5 feet, resulting in reduced downtime and lower repair costs.
The LL1505C is easy to use: turn it on, it levels, it spins. With the addition of the arrow buttons on the transmitter, grade matching can be performed whilst the other axis remains self leveled. You can purchase the optional, RC1402 long range (230 foot) radio remote control makes slope matching a single person operation plus you can use it for line control if the laser is in the vertical position.
|
| |

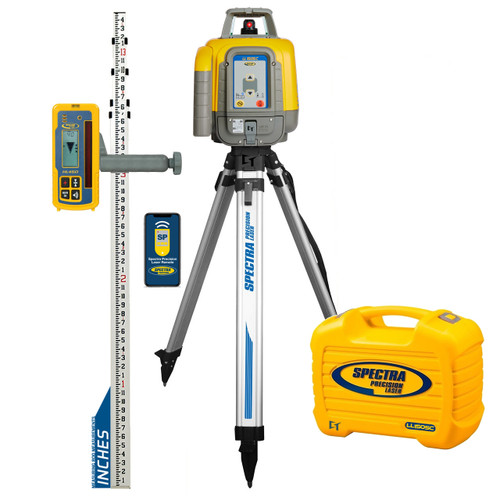

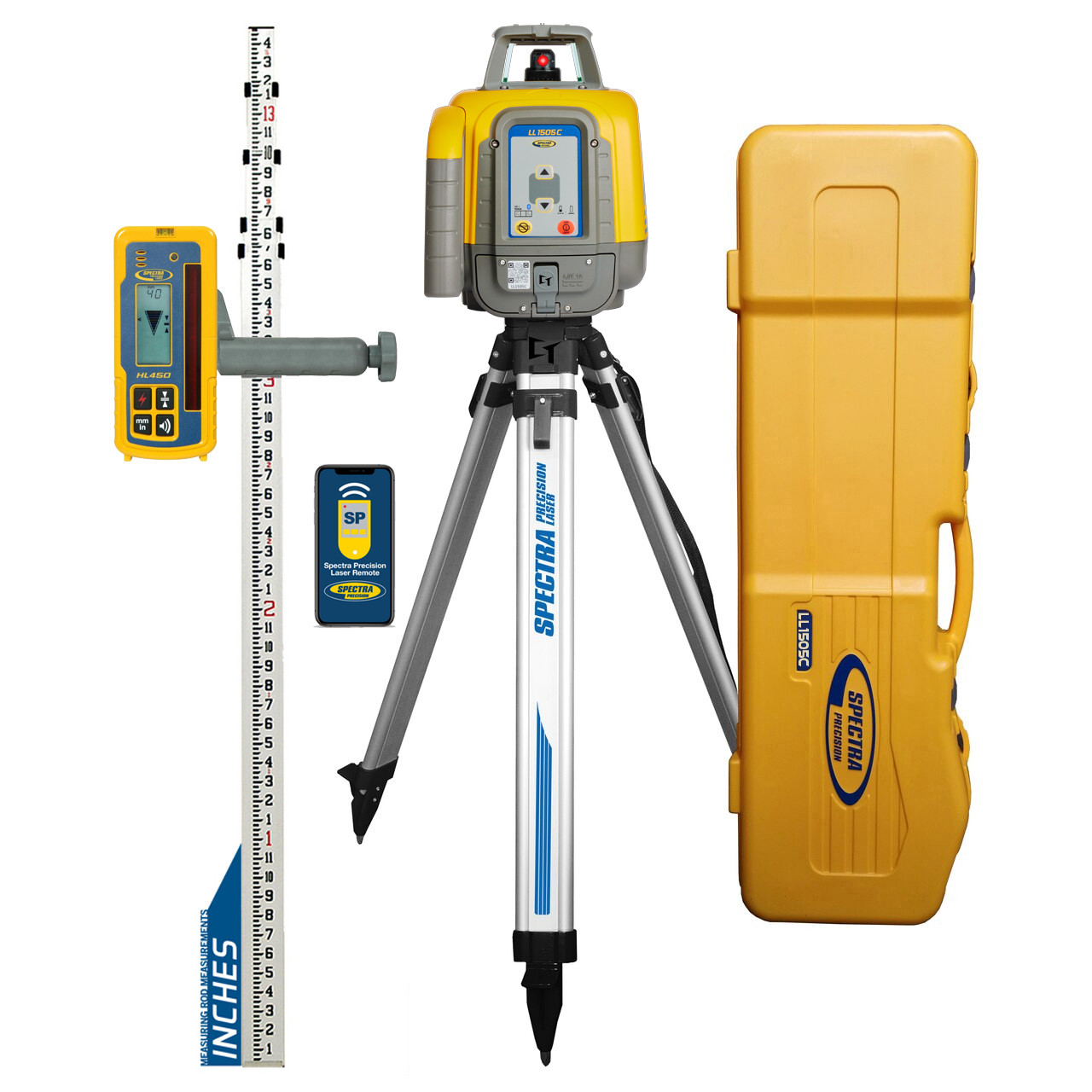

| Spectra Precision LL1505C-X2 Exterior Laser Package INCLUDES |
 |
- LL505C Laser Level
- HL450 Receiver - 4 inch capture height
- Rod Clamp C70
- Rechargeable NiMH Batteries - B10
- Battery Charger - CH10
- 16-Foot Grade Rod INCHES - 11-816T
- Aluminum Tripod - Q104025
- Small Laser Carrying Case 128994-00
- Multi language CD, Quick user guide and Safety Instructions
- 5-Year Warranty
|
| View additional LL1505C PACKAGE OPTIONS Below ⮟ |
|
| |
| Spectra Precision LL1505C Laser APPLICATIONS |
- General elevation control
- Checking and setting elevations for small to medium job sites
- Leveling forms and footers
- Estimating cut and fills
- Excavations
- Basic slopes for driveways and ramps
|
| Spectra Precision LL1505C Laser KEY FEATURES |
- Automatic self-leveling
- Accuracy 1/16 inch @ 100 ft
- Working range of 2,600 ft diameter
- Simple keypad for easy grade matching
- Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
- Long range Radio remote control (optional)
- LL1505C-1, LL1505C-2, LL1505C-17 and LL1505C-27 Complete kits available and fits in one case with tripod and grade rod
- Extremely durable and portable
- 5 Year warranty
|
| Spectra Precision LL1505C Laser BENEFITS |
- Model LL1505C includes carrying case securely holds Laser, receiver and receiver clamp
- Easy to transport, easy to carry, easy to store
- Highly durable construction
- Superior drop and weather protection.
- Fully automatic self-leveling
- Superior drop and weather protection.
- Energy-efficient design offers long battery life
- Extremely versatile with single-axis manual slope
- Cross-axis self-leveling allows for grade matching on the job site.
- Highly durable construction enables the LL1505C to survive a drop up to 3 feet onto concrete
- OPTIONAL Radio remote control offers access to all laser function from every jobsite place
|
| |
| Spectra Precision LL1505C Red Beam Laser SPECIFICATIONS |
| Laser Type |
red diode 630 - 643 nm, Class 2 |
| Laser Orientation |
Horizontal Only |
| Laser Accuracy |
±1/16-inch at 100-feet ((10 Arc Seconds)) |
| Operating Range |
2,600 foot diameter with HL450 Receiver
4,000 foot diameter with HL760 Receiver ((Optional))
|
(optional) Remote Control
Operating Range |
260 foot |
| Compensation Method |
Electronic Self-Leveling |
| Self-Leveling Range |
± 5°, (±8.7%) |
Drop Height onto Concrete Performance
|
3 foot
|
Single Axis Manual Slope
|
Yes (with self-leveling mode on the second axis)
|
Out of level Warning
|
Rotor stops, red out-of-level HI/MAN-LED flashes
|
Power Source
|
10,000 mAh NiMH Rechargable Battery Pack
4 x D-Cell Alkaline Batteries
|
Battery Life
|
Rechargeable - up to 55 hours
Alkaline - 60 hours
|
Battery Status LED
|
Flashing red LED
|
Rotation Speed
|
300 RPM, 600 RPM and 900 RPM
|
| Storage Temperature |
-13°F to 158°F |
| Operating Temperature |
-4°F to 122°F |
| Dust and Waterproof |
Yes - IP66 |
| Tripod Attachments |
5/8 x 11 horizontally and vertically |
| Weight |
5.9 lbs |
Size
|
10.7 L x 7.7 W x 7.9 H inch
|
| Warranty |
5 Years |
|
| |
| Spectra HL450 Receiver - INCLUDED in LL1505C-2 Laser Package |
| Spectra HL450 - The perfect compliment for your Laser |
 |
The Spectra Precision® HL450 Laserometer is an easy-to-use tool that accurately measures elevations across the site, and is ideal for use with any rotating transmitter.
The HL450 features a digital readout of elevation that provides a numeric display of ±1.5 inches. The readout is displayed on the large front and rear LCD’s and shows exactly how far the elevation is from on-grade. Accurate measurements can be made without moving the rod clamp, saving time and increasing productivity.
The HL450 has a 4-inch reception height, double the typical industry standard, which allows quick acquisition of the laser beam. Also included is a patented anti-strobe sensor that prevents construction lights from setting off the receiver and makes it easier to identify the laser beam signals.
The Laserometer is designed to survive the tough construction site conditions. It is totally waterproof and can withstand a drop up to 5-feet onto concrete. |
| |
| Strengths of the Spectra HL450 INCLUDE |
|
Reliable Accuracy
All our models have different settings to suit your jobsite tolerances. The units of measure can be displayed in millimeters, centimeters, feet & inches and fractional inches.
|
|
Crazy Simple
The laser receivers all include a display on the front and back for easy visual indication of detector status and grade information. The display shows proportional arrows to help you find the on-grade position rapidly. An adjustable audible tone indicates high, low and level. All basic functions are a single press away. Set your accuracy and loudness levels and get to work.
|
|
Operating Time
Equipped with 2 AA batteries, all the models deliver long operating time to keep you working on the jobsite.
|
|
Reception Length
The longer the reception zone, the quicker you can acquire the laser beam allowing you to get your work done faster. When used in vertical, a longer pick up zone allows more control when doing tilt-up or curtain walling.
|
|
Tougher than Tough
Designed to withstand a direct drop up to 10 feet onto concrete meaning less downtime due to damage and service requirements. In addition, the IP67 waterproof housing protects the unit from the harsh environment it is used in. Drop it in a puddle or get concrete on it, just wash it off with a hose. It is that good we back it up with an over-the-counter exchange policy for all warranty claims within the defined warranty period giving you peace of mind.
|
| Spectra HL450 Laserometer Features and Benefits: |
- Digital Readout of Elevation allows faster readings by displaying the exact numerical distance from grade, eliminating the need to move the receiver to get to "on-grade".
- Anti-Strobe Sensor stops construction strobe lights from setting off the receiver and eliminates phantom strikes for easier identification of true laser beam signals.
- Large reception height allows faster readings by acquiring the beam quickly, and makes it easier to stay in the beam.
- Durable in tough environments provides less downtime due to damage or service requirements after accidental drops.
|
HL450 Laser Receiver Applications
Setting and checking jobsite elevation and depth for: |
• Cut and fills
• General grading
• Foundations, forms, and footings
• Excavations |
| Spectra HL450 Receiver SPECIFICATIONS |
| Digital readout units |
mm, cm, feet, inches, fractional inch |
|
| Reception height |
4-inches |
|
| |
Fine ~1/16 inch |
|
| |
Medium ~1/4 inch |
|
| |
Calibration Mode ~1/64 inch |
|
| Numeric Readout Height |
3 inches |
|
| Reception Angle |
45° minimum |
|
| Detectable Spectrum |
610 nm ... 900 nm |
|
| Beeper Volumes |
Loud = 100+ dBA
Low = 65 dBA |
|
| Battery Life (2 each AA) |
70+ Hours |
|
| Auto shut-0ff |
30 minutes |
|
| Operating Temp |
-4°F to 140°F |
|
| Dust and Waterproof |
Yes - IP67 |
|
| Weight |
13.1 oz |
|
| Dimensions |
6.6 x 3 x 1.4 inches |
|
| Warranty |
3 Years "No Excuses" |
|
|
| |
|
|
| |
| SPECTRA LL300N VS LL300S : FEATURES |
LL300N |
LL300S |
| Operating Range (Diameter) |
1,650 ft |
2,600 ft |
| ACCURACY |
3/32"@100' |
1/16"@100' |
| Battery Life (Alkaline) |
70 hours |
60 hours |
| Weight |
6 lbs |
6 lbs |
| WARRANTY with "Knock Over" Drop Specification |
5 ft |
3 ft |
| Horizontal Electronic self-leveling |
* |
* |
| Vertical Capability (Manual mode only) |
* |
* |
| Water Resistant / 'Rain Proof' |
* |
* |
| Metal sunshade & patented lighthouse to seal & protect the rotor |
** |
** |
Manual 'Slope' mode with Cross-Axis Self Leveling
(with RC601 remote) |
** |
** |
NiMH Rechargeable battery option
(vs Alkaline only on LL100) |
** |
** |
"Laserometer" Receiver
(TWICE the PhotoCell length + Numeric Readout) |
** |
** |
5 YEAR 'No Cost' WARRANTY
(LL100 has only 1 year 'No Cost' + 2 Years Limited) |
** |
** |
| |
| OPTIONAL RC402N Remote Control for LL300S |
| This Spectra RC402N Remote control allows for the user to control manual slope with one person from distances up to 330-feet. Without this remote control two people are need to adjust manual slope. Access and adjust the below features using the remote control. The remote control mirrors the basic functionality of the LL300S keypad. |
 |
RC402N allows you to access and adjust these features
remotely on the LL300S Series Spectra Laser
- Adjustment of Slope Manually.
- Mask Mode Settings
- About LS
- Runtime
- Radio Channel Settings
- HI Alert Sensitivity Settings (HI = Height of Instrument)
- View HI Status
- Callibration Settings
- Language Settings
- View Battery Status
|
|
Manual Grade Match: (1)Set up the laser at the first elevation point and align it to the second desired slope/elevation hub using the sighting guides on top of the sunshade. (2) Check the laser beam elevation close to the laser. (3)To activate the Y-axis single slope mode, press the manual mode button twice. The red and green LED flash simultaneously (once a second). (4)Set the grade rod with the receiver attached to it on the second desired slope/elevation hub. NOTE: DO NOT CHANGE THE RECEIVER POSITION ON THE ROD. (5)Using the remote control press the up and down arrow buttons until you get an on-grade reading on the receiver. (6)You now can check elevations along the direction of the slope. NOTE: When in Slope Mode the cross axis / X-axis will self level to maintain a consistent elevation of the sloped reference plane.
Mask Mode: allows you to electronically turn off the laser beam (electronic shutters) in up to 3 lighthouse windows to prevent interference with other receivers on on the jobsite.
HI Alert: Electronically monitors the height of the instrument. If the height changes the laser will stop and you will be notified via tone and visibly on both the laser and the remote control.
Language Options: EN, DE, IT, FR, ES, PT, NL, DA, NO, SV, FL, PL, TR and CZ
|
|
