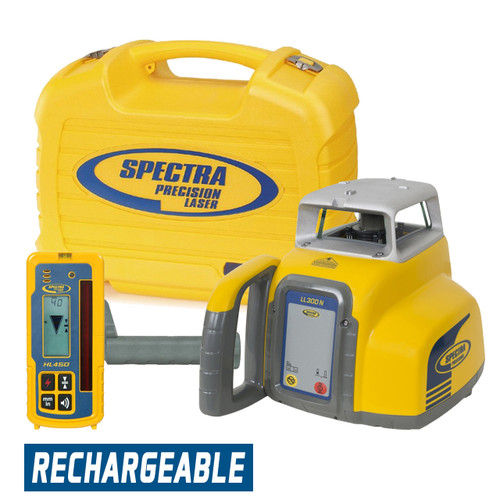

Spectra Precision LL300N-4 Laser Package with HL450 Receiver and Rechargeable Batteries

Product Description
Videos

Spectra Precision LL300N-4 Laser Level Package
with HL450 Laserometer Laser Receiver and Rechargeable NiMH Batteries

This Spectra LL300N-4 is a NEW LASER - we only sell new lasers!

No Cost 5-Year Warranty offers no repair charge for parts and labor of the laser.
If Laser Unit fails in the first FIVE years - send it back and get it repaired for free!

Spectra Precision LL300N-4 Laser OVERVIEW

The Spectra Precision Laser LL300N package is your complete medium-range, high-accuracy solution. Ideal for basic slope work such as driveways and ramps, checking or leveling elevations, concrete forms, footings and foundations for small -and- medium sized jobs, and for excavations, digging footings and septic tanks.

The Spectra LL300N features a rugged design with "hard hat" rotor protection that provides superior drop and weather protection. Built to withstand severe drops of up to 3-feet directly onto concrete, or up to 5 feet when pushed over on a tripod means less downtime and cost due to damage caused by accidental drop or tip-over and lower repair costs over the life of the product.

The Spectra LL300N's fully automatic self-leveling capability provides fast, accurate setup. Rechargeable Ni-Cad battery pack or alkaline batteries keeps the unit working with no downtime due to power loss. Single cross-axis manual slope mode with cross-axis self-leveling allows grade matching for basic slope work, while maintaining accuracy in the cross-slope.

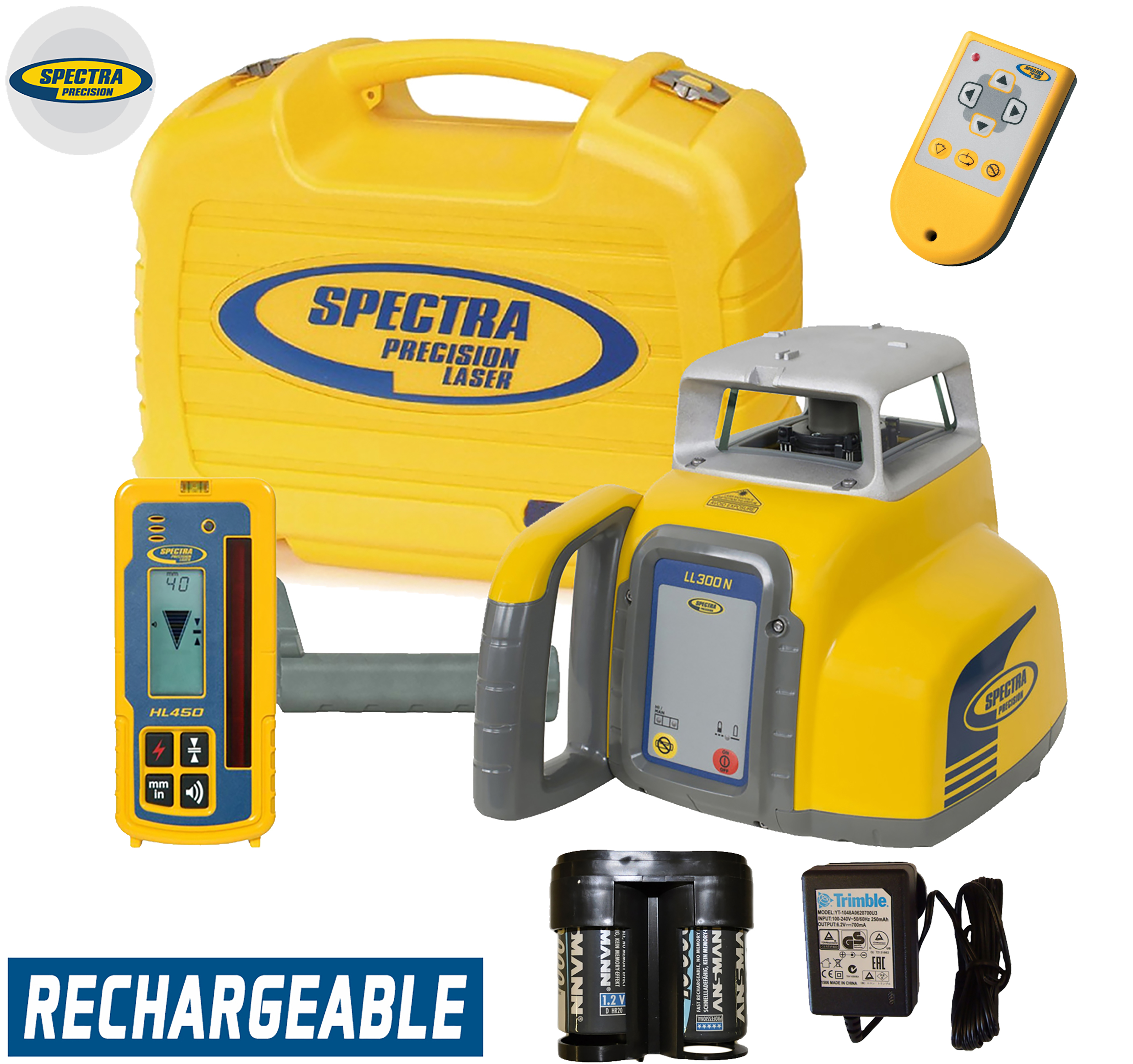

Spectra Precision LL300N-4 Laser INCLUDES

You get the below components when you order an LL300N-4

• LL300N Auto Self-Leveling Laser Level
• HL450 Laser Receiver - Laserometer
• Receiver Clamp C45
• Small Carrying Case
• (4) D-Cell NiMH Rechargeable Battery Pack

HL450 Laser Receiver / Laserometer DETAILS - Included with the LL300N Package

The Spectra HL450 Laser Receiver is a Highly versatile receiver for basic and advanced leveling and aligning
The Spectra Precision® HL450 Laserometer is an easy-to-use tool that accurately measures elevations across the site, and is ideal for use with any rotating transmitter.

The HL450 features a digital readout of elevation that provides a numeric display of ± 40 mm or ±1.5 inches. The readout is displayed on the large front and rear LCD’s and shows exactly how far the elevation is from on-grade. Accurate measurements can be made without moving the rod clamp, saving time and increasing productivity.

The HL450 has a 4-inch reception height, double the typical industry standard, which allows quick acquisition of the laser beam. Also included is a patented anti-strobe sensor that prevents construction lights from setting off the receiver and makes it easier to identify the laser beam signals.

The Laserometer is designed to survive the tough construction site conditions. It is totally waterproof and can withstand a drop up to 5-feet onto concrete.

Spectra HL450 Laserometer Features and Benefits:

Digital Readout of Elevation allows faster readings by displaying the exact numerical distance from grade, eliminating the need to move the receiver to get to "on-grade".
Anti-Strobe Sensor stops construction strobe lights from setting off the receiver and eliminates phantom strikes for easier identification of true laser beam signals.
Large reception height allows faster readings by acquiring the beam quickly, and makes it easier to stay in the beam.
Durable in tough environments provides less downtime due to damage or service requirements after accidental drops.

HL450 Laser Receiver Applications
Setting and checking jobsite elevation and depth for:

• Cut and fills
• General grading
• Foundations, forms, and footings
• Excavations

Spectra Precision LL300N-4 Laser APPLICATIONS

• Checking/setting elevations, concrete forms, footings, and foundations for small- and medium-sized jobs
• Basic slope work such as driveways and ramps
• Excavations, digging footings and septic tanks

Spectra Precision LL300N-4 Laser KEY FEATURES

• Fully Automatic self-leveling provides fast and accurate set-up
• Accuracy 3/32-inch at 100 foot
• Working range of 1,650 foot diameter
• Simple one-button operation for quick start up
• Height of Instrument Alert : unit stops rotating when jarred to avoid erroneous readings
• Single axis manual slope mode with 'cross-axis' self-leveling allowing grade matching for basic slope work, while maintaining accuracy in the cross-axis using the (optional) RC601 Remote Control
• Easy grade matching using the (optional) RC601 remote control from the rod position
• Extremely durable and portable
• 5-Year warranty

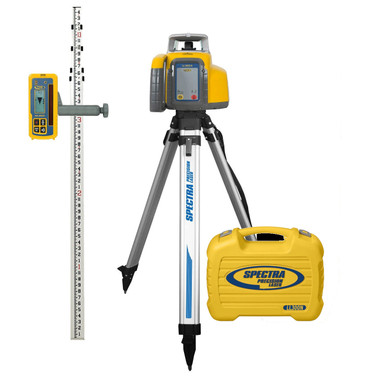

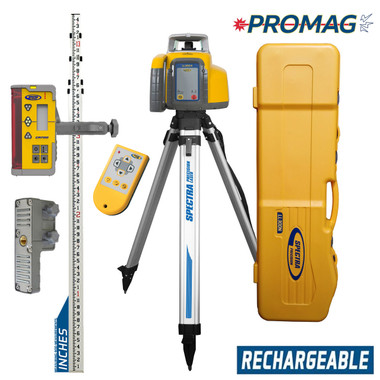

Spectra Precision LL300N Laser Kit Comparison Chart


	HL450 RECEIVER	Measuring Rod - 15'	2161 TRIPOD	Rechargeable Batteries	SYSTEM CASE	SMALL CASE
LL300N
LL300N-1		GR151 10ths
LL300N-2		GR152 inches
LL300N-3		GR153 metric
LL300N-4
LL300N-8	HR320
ALL above packages include the LL300N laser transmitter and case

*OPTIONAL RC601 Infrared Remote Control*
	OPTIONAL RC601 Remote Control allows easy grade matching using the remote control from the rod position

SPECTRA LL300N Laser SPECIFICATIONS

Laser Source

635 – 670 nm visible, Class 3A/3R

Laser Accuracy

3/32 inch per 100 foot

15 arc seconds

Operating Receiver Range (Diameter)

with HL450 Receiver 1,650 foot

Self-Leveling Range

±5º

Compensation Method

Electronic Self Leveling

Power Source

4 “D” Rechargeable or Alkaline Batteries

Battery Life

Rechargeable: 45 hours
Alkaline: 90 hours

Battery Status LED

Flashing Red LED

Battery Recharging Time

Less than 10 hours

Rotation Speed

600 rpm

Out of Level (HI)-Warning

Rotor stops, red out-of-level LED blinks

Out of Level Warning at Receiver

Programmable at dealer
(CR600 receiver only)

Machine Control Compatible

Yes

Protective Rotor Cage (removable)

Yes

Drop Height on Concrete

3 feet

Single Axis Manual Slope Mode

Yes with optional RC601 remote
(w/self-leveling mode on the second axis)

External Remote Control (Range)

160 feet

Tripod Mount (Horizontal & Vertical)

5/8"–11

Operating Temperature

–4 ºF to 122 ºF

Storage Temperature

–4 ºF to 158 ºF

Waterproof

Yes, IP54

Size (inch)

9.6 length × 6.5 width × 7.3 height

Weight (pounds)

Warranty

5-Years

LL100N vs LL300N Laser COMPARISON

SPECTRA LASER COMPARISON CHART	LL100N	LL300N
Operating Range (Diameter)	1,000 ft	1,650 ft
ACCURACY (@ 100-feet)	1/8-inch	3/32-inch
Laser Receiver	HR320	HL450
Battery Life (Alkaline)	80 hours	90 hours
Weight	3.3 lbs	6 lbs
WARRANTY with "Knock Over" Drop Specification	3 ft	5 ft
Horizontal Electronic self-leveling	yes	yes
Vertical Capability (Manual mode only)	yes	yes
Water Resistant / 'Rain Proof'	yes	yes
Metal sunshade & patented lighthouse to seal & protect the rotor	no	yes
Manual 'Slope' mode with Cross-Axis Self Leveling (with RC601 remote)	no	yes
NiMH Rechargeable battery option (vs Alkaline only on LL100)	no	yes
"Laserometer" Receiver (TWICE the PhotoCell length + Numeric Readout)	no	yes
5 YEAR 'No Cost' WARRANTY (LL100 has only 1 year 'No Cost' + 2 Years Limited)	3-Year limited	5-Year no cost

GRADE LASER COMPARISON CHART

Horizontal Only Laser Levels

Horizontal and Vertical

Accuracy

1/8-inch @ 100-ft
20 arc seconds

3/32-inch @ 100-ft
15 arc seconds

1/16-inch @ 100-ft
10 arc seconds

Operating
Diameter

1,150 feet

1,650 feet

2,600 feet

1,650 feet

1,150 feet

2,600 feet

Self-
Leveling
Range

±5 degrees electronic servo self-leveling

±11 minutes

±5 degrees electronic servo self-leveling

Power Source

2 x D-Cell
Alkaline

4 x D-Cell Alkaline Standard
Rechargeable NiMH Optional

2 x D-Cell
Alkaline

Rechargeable NiMH Standard
Alkaline Back-Up

Battery Life

80-hours Alkaline

90 hours Alkaline
45 hours NiMH

60 hours Alkaline
47 hours NiMH

175 hours Alkaline
100 hours NiMH

50-hours Alkaline

60 hours Alkaline
45 hours NiMH

Water Resistance

Yes IP54

Yes IP66

Yes IP54

Yes IP66

Warranty

3-Year
Instant Exchange

5-Year

3-Year
Instant Exchange

5-Year

Receiver Options

(2.5") HR320

(2.5") HR320
(4") HL450

(5") HL760

(5") HL700

(2") HL150U
(2.5") HR320

(2") HL150U
(5") HL760

Works with Remote

Size (inches)
L x W x H

8.5 x 6.7 x 6

10.7 x 7.7 x 7.9

10.8 x 7.5 x 7.5

8.5 x 6.7 x 6

10.7 x 7.7 x 7.9

Weight lbs.

3.3

6.8

3.3

6.8


Spectra Precision LL300N Laser Level DOWNLOADS
LL300N Datasheet page 1	LL300N Datasheet page 2

LL300N User Guide

Laser Orientation:

Horizontal

Application:

Exterior

Laser Color:

Red

Laser Range (diameter):

1,650 feet

Laser Accuracy:

3/32-inch

Grade Type / Range:

Manual Grade with Remote

Plumb Point:

Battery Type:

Rechargeable

Receiver:

HL450 (4-inch Capture Height)

Remote Control:

Optional
