Topcon RL-200 Dual Grade Laser with LS-80L Receiver (314920712)
Multi-Purpose Horizontal Only Rotating Single Grade Laser with Alkaline Batteries
Medium-range Applications
|
|
includes: LS-80X Receiver
|
 |
|
Topcon RL-200 2S Dual Grade Laser Package (314920712)
Works on both horizontal and vertical axes, the Topcon RL-200 2S Dual Grade Laser is great for geopositioning, land surveying, geospatial monitoring, construction, surveying, layout, foundation and other exterior construction applications. With an accuracy of horizontal ±7 arc seconds, this offers an operating range up to 3,600 feet with a laser receiver. Also, it is auto-leveling within ±5 degrees and has a wide single grade range of -10 to +25 percent.
When using the beam masking mode, the RL-200 2S allows multiple teams doing measurements from conflicting with other readings. For more accuracy, it comes with adjustable rotation speeds of 300, 600 or 900 rotations per minute. Also, it has a height-of-instrument alert function to prevent errors and mistakes in leveling.
The Topcon RL-200 2S includes a high contrast LCD graphical display that makes it easier to track data. With an IP66 rating, this Topcon grade laser is protected from dust and water splashes. Also, it runs up to 100 hours with alkaline batteries and up to 90 hours with optional rechargeable NiMH batteries. As an extra feature, it includes a 5/8-11 tripod thread that is compatible with most tripod brands.
Configuration Options
The Topcon RL-200 2S Single Grade Laser offers two packages with varying laser receivers and batteries.
314920712: ((Replaces by 31292022)) Topcon RL-200 2S Dual Grade Laser with LS-80X Laser Receiver and Alkaline Battery - MADE IN JAPAN
314920722: ((Discontinued and Replaced by 31292012)) Topcon RL-200 2S Dual Grade Laser with LS-80L Laser Receiver and Alkaline Battery - MADE IN CHINA
314920782: Topcon RL-200 2S Dual Grade Laser, LS-100D Laser Receiver, Rechargeable Batteries, Remote
|

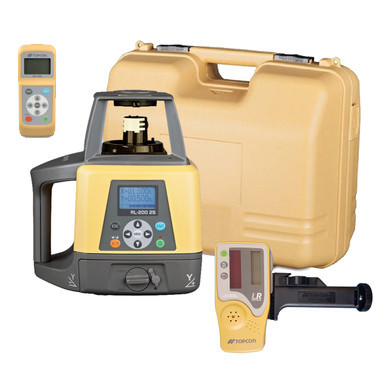

| Topcon RL-200 2S Dual Grade Laser Package 314920712 INCLUDES |
- RL-200 2S Single Grade Laser Transmitter (314920712 )
- Laser Receiver LS-80X
- Receiver Rod Bracket Holder 6
- (4) D-Cell Batteries
- Small Protective Carrying Case
- User Manual
- 5-year Manufacturers Warranty
|
| Topcon RL-200 2S Key FEATURES and BENEFITS |
Rugged, Lightweight and Compact
The Topcon RL-200 Series revolutionary encoding system provides the highest grade repeatability, 7 arc seconds, of any other laser! No one even comes close. Setup after setup, time after time, you’re always right on grade!The RL-200 2S has dual slope capability from -10% up to +25%.

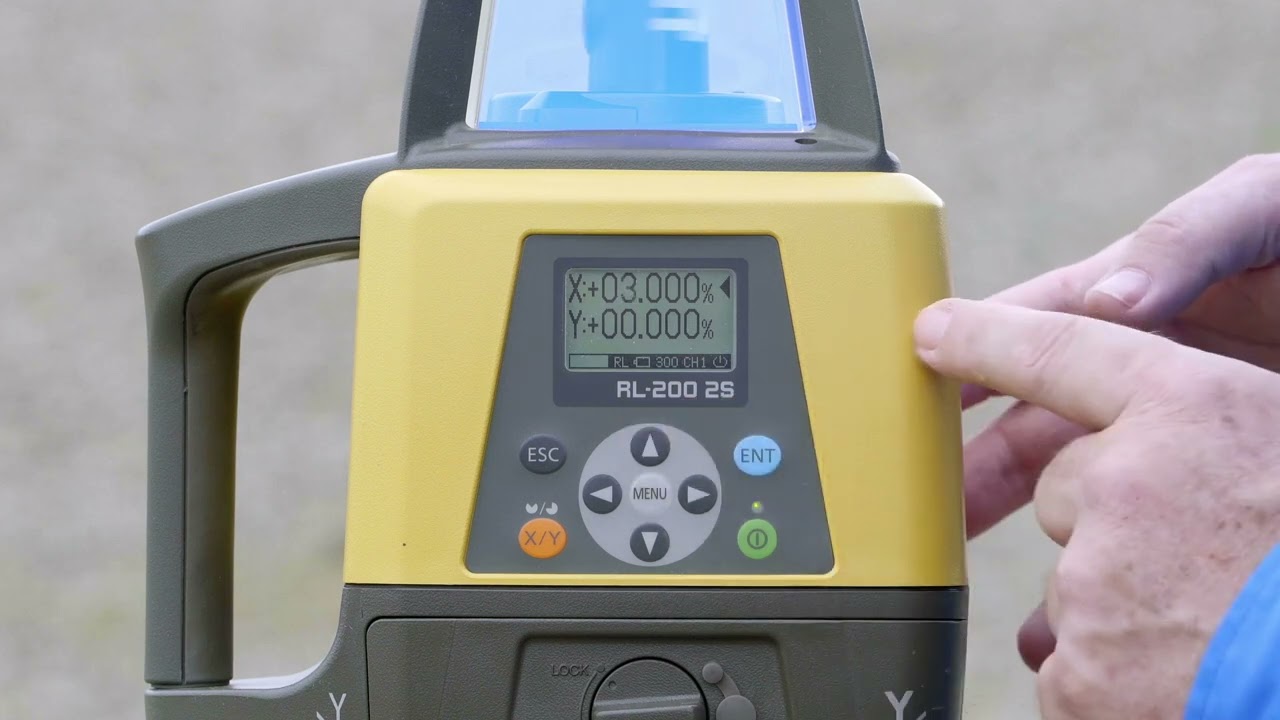

The Topcon RL-200 features a large, high-contrast, graphical display that clearly shows all functions at a glance.
- Accuracy ±7 Arc second
- Wide Grade Range (up to 25% slope Dual Axis) without Slope Blocks
- Auto Leveling ±5 degrees
- Increased Range - Up to 3,600 feet diameter
- Rotation Speed 300, 600, or 900 RPM
- Height-of-Instrument (h.i.) Notification Alert
- Beam Feature Masking Mode
- Extra-Long Battery Life Up-To 100 Hours
- Environmental Protection Rating IP66 dust-proof and water resistance
- Graphical Display Clear and High Contrast
- Connection Fitting 5/8-11 inch tripod thread
|
| Topcon RL-200 2S Dual Grade Laser APPLICATIONS |
- Land Surveying
- Civil Engineering & Design
- Construction Survey/Layout
- Site Work
- Foundation and Exterior
|
| Topcon RL-200 1S Single Grade Laser Package COMPARISON CHART |
| SINGLE GRADE |
| Part Number |
Series |
Receiver |
Batteries
|
Remote |
| 314910702 |
RL-200 1S
|
YES
LS-80L |
Alkaline |
No
|
| 314910782 |
RL-200 1S |
YES
LS-100D |
Rechargeable NiMH
|
No |
| 314910762 |
RL-200 1S |
YES
LS-80L
|
Rechargeable NiMH |
N/A |
| |
| Topcon RL-200 2S DUAL Grade Laser Package COMPARISON CHART |
| DUAL GRADE |
| Part Number |
Series |
Receiver |
Batteries |
Remote |
|
314920712
|
RL-200 2S |
YES
LS-80X |
Alkaline |
NO
Optional |
314920722
Discontinued
Replaced by 314920712 |
RL-200 2S |
YES
LS-80L |
Alkaline |
NO
Optional |
| 314920722 |
RL-200 2S |
YES
LS-100D |
Rechargeable NiMH |
YES |
| |
| All include RL-200 laser transmitter, Receiver Bracket, and Small Protective Case. |
| |
|
| Topcon RL-200 2S Dual Slope Laser SPECIFICATIONS |
| LASER |
| Color |
Red
|
Wavelength
|
685 Nm |
| Classification |
Class 3
|
Direction
|
Horizontal Only
|
Visibility
|
Visible
|
TOPCON RL-200 2S LASER RANGE
|
Exterior
|
Up to 3,600 feet
|
Self-Leveling
|
± 5 degrees
|
BATTERY / POWER
|
| Power Source |
RL-200S 2S (314920712) Alkaline
RL-200S 2S (314920722) Rechargeable NiMH
|
| Battery Life w/ included Alkaline Batteries |
Up to 100 hours
|
| Battery Life w/ Rechargeable NiMH Batteries |
5/8 x 11 horizontally and vertically |
Battery Life Alert
|
Yes
|
TOPCON RL-200 2S LASER FEATURES
|
| Display |
Back-lit graphical LCD |
| Bump Sensor (H.I. Out of Position Alert) |
Yes |
| Protection Class |
IP66 (dust-proof and water jet protection) |
| Tripod Connection (Center Screw Thread) |
5/8-11 Horizontal |
| Adjustable Rotating Speed |
300. 600, and 900 rpm |
| GENERAL |
| Dimensions |
6.9 x 8.6 x 10.0 inches |
| Warranty |
5-year |
| TEMPERATURE |
| Operating |
-4°F to +122°F |
| FUNCTIONS |
| Grade Operation |
Automatic |
| Automatic Leveling |
Yes |
| Beam Operating Modes |
Beam Masking |
| APPLICATIONS |
| Elevations Checking / Setting |
Yes |
Transferring Points from floor to ceiling
|
Yes |
Machine Control of
Excavators, Graders, Dozers or Similar Equipment |
Yes |
Installation of Interior Fittings
Cabinets, Lighting, Windows, Counter-tops, ect. |
Yes |
Short-Range Leveling for
Decks, Patios and Swimming Pools |
Yes |
| Installation Leveling Interior / Walls |
Yes |
Installation Leveling Ceiling Grids
|
Yes |
Squaring and Layout of
Partitions, Walls and Tile Floors
|
Yes |
Concrete Forms, Footings and Foundations
|
Yes |
Checking Elevations for
Sub-Base and Sub-Grade |
Yes |
| Estimating Cut and Fill |
Yes |
| Matching Existing Slope and Grade |
Yes |
| Locating Finished Floor Levels |
Yes |
| GRADE SPECIFICATIONS |
| Type |
Single |
| Percentage |
-5% to +25%
|
| Accuracy |
Horizontal ±7 arc seconds
|
|
| |
| INCLUDED TOPCON LS-80X LASER RECEIVER with Bracket |
 |
Topcon Laser Sensor Receiver
- Increase range of rotary laser
- New improved and louder audible on-grade tone.
- IP-66 rating against dust and water
- Protective case
- LCD display
- Uses AA batteries
|
INCLUDED Topcon LS-80X Long Range Laser Receiver OVERVIEW
|
|
Overview for the Topcon LS-80X Laser Receiver Sensor Detector With Holder
The Topcon LS-80X Laser Receiver Sensor Detector is able to allow you to have a longer range when using a red beam rotary laser. The unit can be adjusted for either a fine or course band, which will help improve the accuracy. It has an audible notice for the height, to make sure it is adjusted properly The Newly improved LS-80X has a rear mounted speaker with a louder setting for a louder audible tone on noisy jobsites where the audible tone is hard to hear. You can select from 11 different channels to display the data on the LCD display.
With a rating of IP-66, the Topcon LS-80X Laser Receiver Sensor Detector is protected against dust and water. The unit is in a rubber case, so it is also protected against dropping it. It will stand up to a variety of job conditions. It can also be mounted with a Holder 6 bracket, so it will be more stable.
The Topcon LS-80X Laser Receiver Sensor Detector runs on two AA batteries. It will run for up to 120 hours, allowing for plenty of work time on the job site. It will also shut down after 30 minutes if it hasn't been used, to help save the battery life.
|
|
| |
| |
