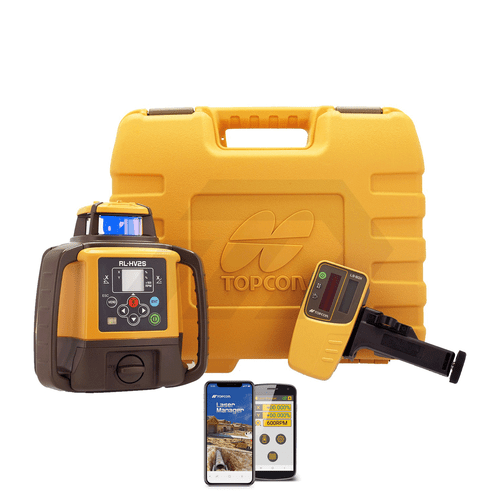

Topcon RL-HV2S Self-Leveling Dual Grade Laser DB Kit with LS-80X Receiver and Alkaline Batteries- 1051612-01

DUAL SLOPE, LONG RANGE, SELF-LEVELING LASER
Following in a long line of superior quality laser transmitters the RL-HV2S is a dual slope, long range, self-leveling instrument built to outperform all of its competitors.

Bluetooth Laser Manager for your phone (App Download)
Compatible for iOS and Android provides wireless remote control using a cell phone to adjust slope and check calibration remotely.  No special remote control needed.

This laser is for general construction or engineering projects and designed to be used for flat work, single grade or dual grade applications.  Slopes up to  ±5% can be used in either the X or Y axis.  With a 2,600 foot diameter operating range the RL-HV2S has the power to cover even the biggest job sites.

The RL-2HVS can be turned on its side for layout and alignment applications. Lay it down on the built-in mounts or attach it to a tripod and the laser will electronically self-level for fast and accurate vertical applications.

This versatile construction tool is loaded with all the features contractors love including a long battery life (120 hours with Alkaline Batteries) height of instrument alert, and electronic shutters.  All of these features can be accessed on the front control panel or on the included remote control.

• Self-Leveling with Single or Dual Slope

• Horizontal, Multi-Slope and VERTICAL Applications
• Rugged, Lightweight and Compact
• Long Range Operation 2,600 ft diameter
• High Horizontal Accuracy 1/16-inch @ 100-feet
• Simple and intuitive Dual Slope, Single Slope or Flat Work

• Tough IP66 Rating - Dust and Water Rating
• Horizontal Self-Leveling Range ± 5 degrees
• Long battery life - 100 hours Alkaline

• Out of Level Notification
• Laser Manager App (iOS and Android)

• RL-HV2S Dual Grade Laser (Alkaline Batteries)
• LS-80X Long Range Laser Receiver Sensor 1046259-01
• Receiver Rod Clamp Holder 6 (312890112)

• (4) D-Cell Alkaline Batteries (Dry Battery Kit) "NOT INCLUDED"

• Rugged Hard Shell Carrying Case
• 5-Year Warranty Guarantee

MULTI-USE APPLICATIONS
Designed for a variety of tasks, it can be used for horizontal, sloping and vertical laser applications.  Slopes up to ± 5 % can be used in either the X or Y axis.  Turn it on its side and use it for layout and alignment jobs.

HIGH POWERED
With an operating range of over 2,600 feet diameter the RL-HV2S has the power to cover even the biggest projects.

LONG BATTERY LIFE
Contractors who want a laser with a long battery life will love the RL-HV2S.  With an operating time of 120 hours on alkaline batteries this laser will still be working long after others have quit.

ALL WEATHER DEPENDABILITY
With the IP66 rating, the TOPCON RL-HV2S is JOBSITE TOUGH and can withstand dust, a sudden shower and even a torrential rainfall.

5-YEAR GUARANTEE
The TOPCON RL-HV2S Laser comes with a FIVE YEAR GUARANTEE.  Topcon is backing up this reliable, accurate laser with the best factory warranty in the industry.

Topcon LS-80X LONG RANGE LASER SENSOR
New laser sensor LS-80X offers increased working range* even with other Topcon rotating lasers.  It indicates the laser beam position with two LCD's on both sides plus audible tone.  The LCD icons also notify the HI Alert and Low Battery warnings of the RL-H4C, RLH5A, RLSV1S, RL-SV2S, RL-HV1S and RL-HV2S lasers.

The Topcon LS-80X Laser Receiver Sensor Detector is able to allow you to have a longer range when using a red beam rotary laser. The unit can be adjusted for either a fine or course band, which will help improve the accuracy. It has an audible notice for the height, to make sure it is adjusted properly. You can select from 11 different channels to display the data on the LCD display.

With a rating of IP-66, the Topcon LS-80X Laser Receiver Sensor Detector is protected against dust and water. The unit is in a rubber case, so it is also protected against dropping it. It will stand up to a variety of job conditions. It can also be mounted with a Holder 6 bracket, so it will be more stable.

The Topcon LS-80X Laser Receiver Sensor Detector runs on two AA batteries. It will run for up to 120 hours, allowing for plenty of work time on the job site. It will also shut down after 30 minutes if it hasn't been used, to help save the battery life.

Topcon LS-80X Receiver FEATURES

• Increase range of rotary lasers
• Fine or course sensitivity
• Height alert
• IP-66 rating against dust and water
• Uses AA batteries
• Low battery alert
• 30 minute shut down
• Protective case
• LCD display
• 2-inch capture window

*Approximately 20 percent increase.
